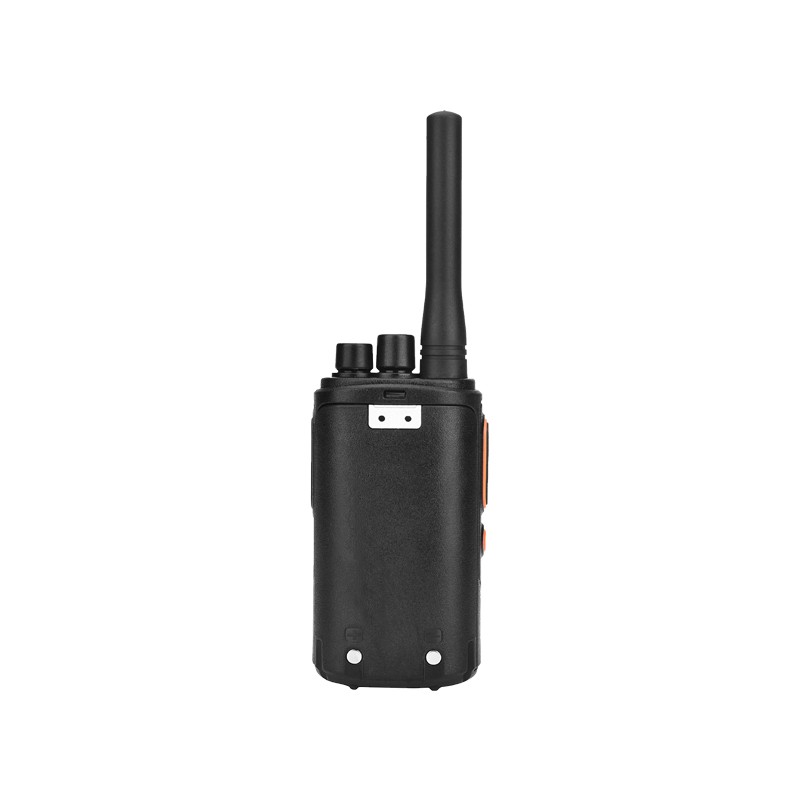

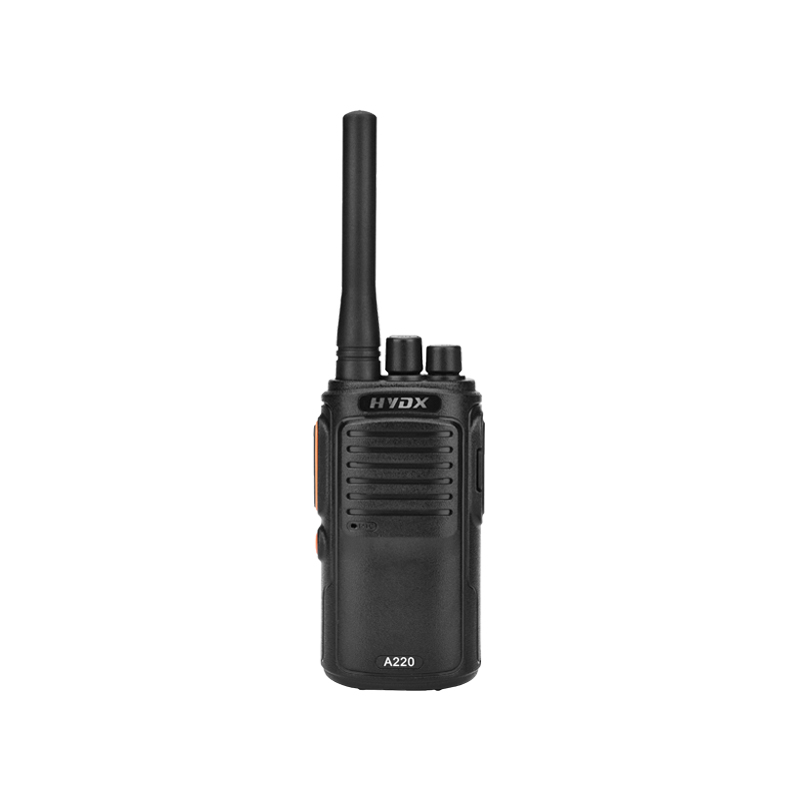

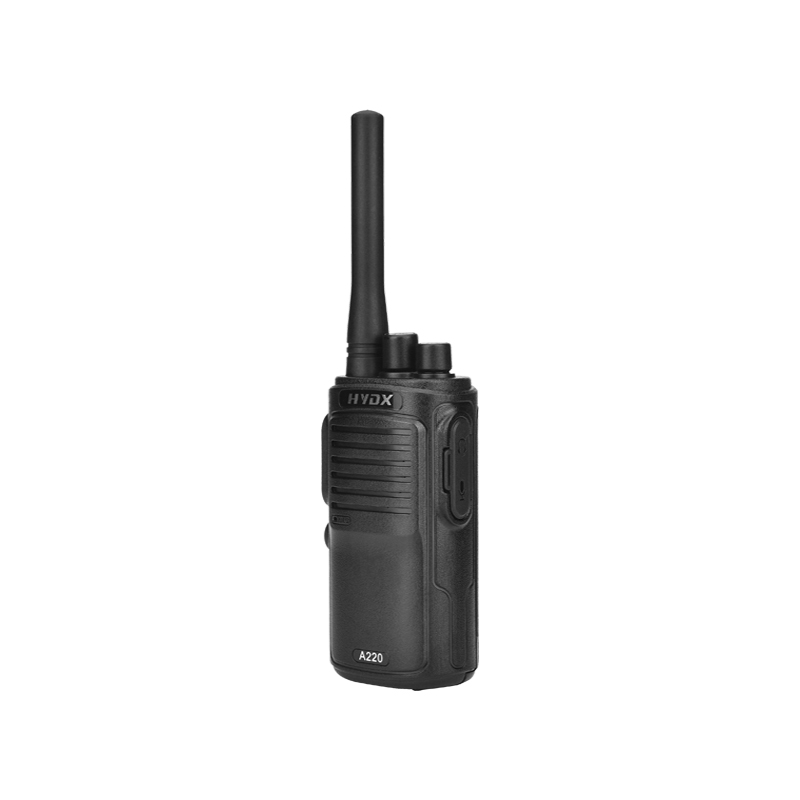

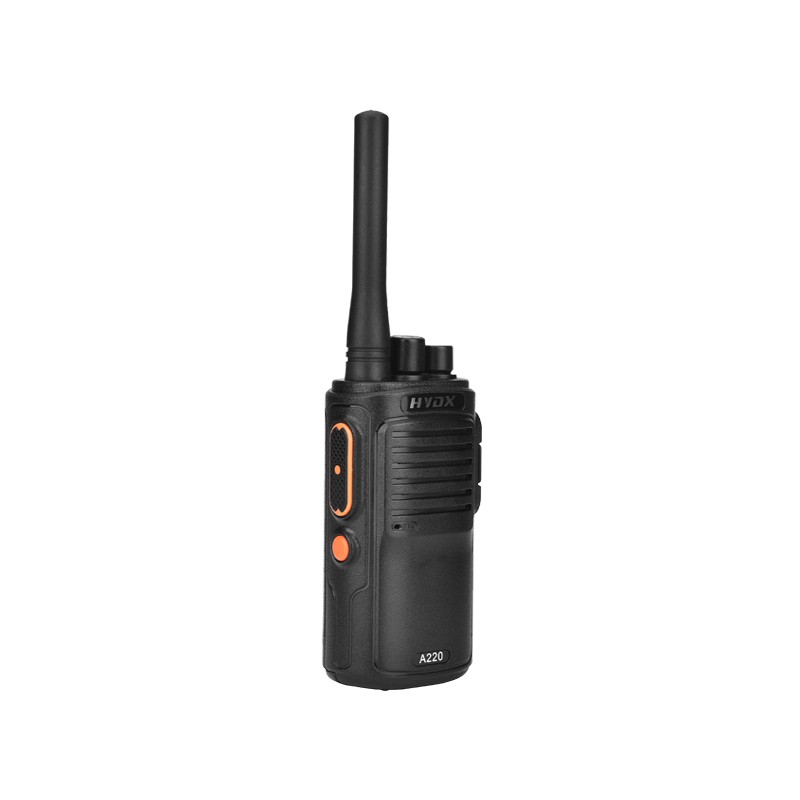

16CH Handheld Mini Portable Two Way Radio

1100mAh Multiple charging modes UHF portable mini frs two way radio

Brand:
HYDX
Item NO.:
A220
Order(MOQ):
500
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
45~60
Weight：
196

Inquiry now

Product Detail

Product Description：

·Real 1100mAh cold resistant battery provides 10-12 hours of frequent use on a single charge; suitable for long outdoor travel or shift or business.
·VOX Function give you clear call and free your hands;built-in secure call can keep your secure communication
·Portable walkie talkies with durable radio body; high-quality antenna; belt clip and battery are not easy to be damaged and support long-term use.
·Handheld walkie talkies; strong penetration and audio keep you and your team always stay in contact with loud clarity sound quality in building or outdoor.
·Easy to use, no complicated buttons; ready to use out of the box; with OTA Programming; VOX; wireless copy; Anti-cracking and other practical functions.

Main Functions

1.400-470MHz

2.High/Low Power Adjustable

3.Scan

4.Battery Save

5.VOX

6.Scrambler

7.Frequency Hopping

8.Compandor

9.Voice Broadcast

10.OTA

12.Wireless Copy

13.Anti-cracking

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 3.7V
Battery Type	1100mAh
Dimension(Excluding antenna)	115(H)×55(W)×35(D)mm
Weight(Battery,Antenna Including)	About 196g
TRANSMITTER
Carrier Frequency Tolerance	±2.5×10-6
Carrier Output Power	≥2W/4.2V
Modulation Sensitivity	12±3mV
Modulation Distortion	≤ 5%
Modulation Limit	≤ 5kHz
Occupy Bandwidth	≤16kHz
Spurious RF Components	≤7.5μW
Adjacent Channel Power	≤-65dB
Transmit Signal to Noise Ratio	≥40dB
RECEIVER
Reference Sensitivity	≤ -121 dBm
Adjacent Channel Selectivity	≥ 65 dB
Squelch Switch Sensitivity	≤0.22μV
Modulated Receive Bandwidth	≥ 1±7kHz
Co-channel Suppression	≥-8dB
Block	≥ 85 dB
Rated Output Power	500mW
Rated Audio Distortion	≤5%
