2W UHF Durable Rugged Portable Two Way Radio

2W unlicensed 1200mAh battery type-c charging frs portable walkie talkie

Brand:
HYDX
Item NO.:
H1
Order(MOQ):
1000
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
30~45
Weight：
200

Inquiry now

Product Detail

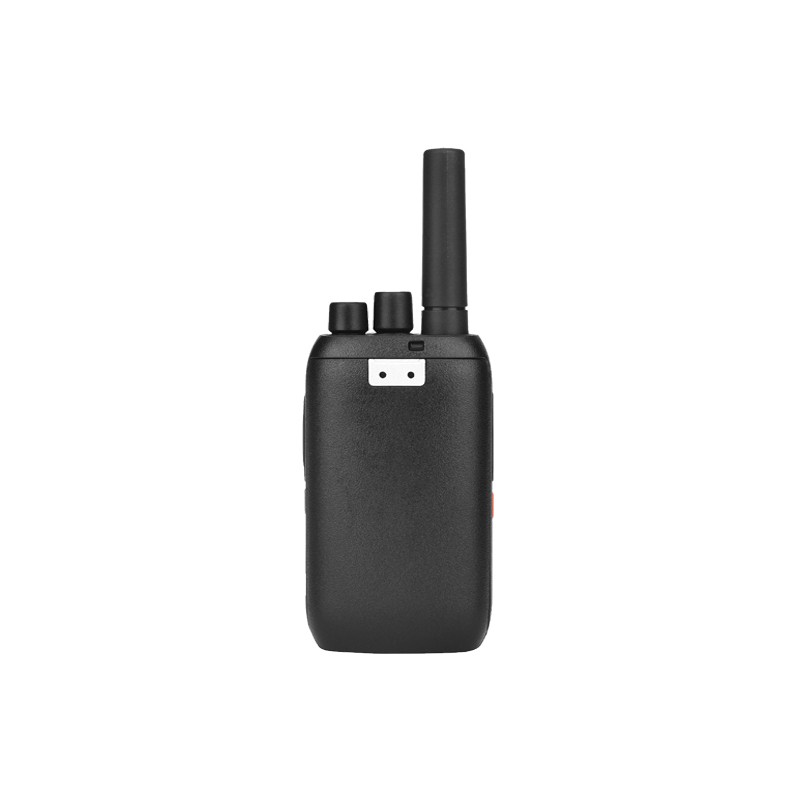

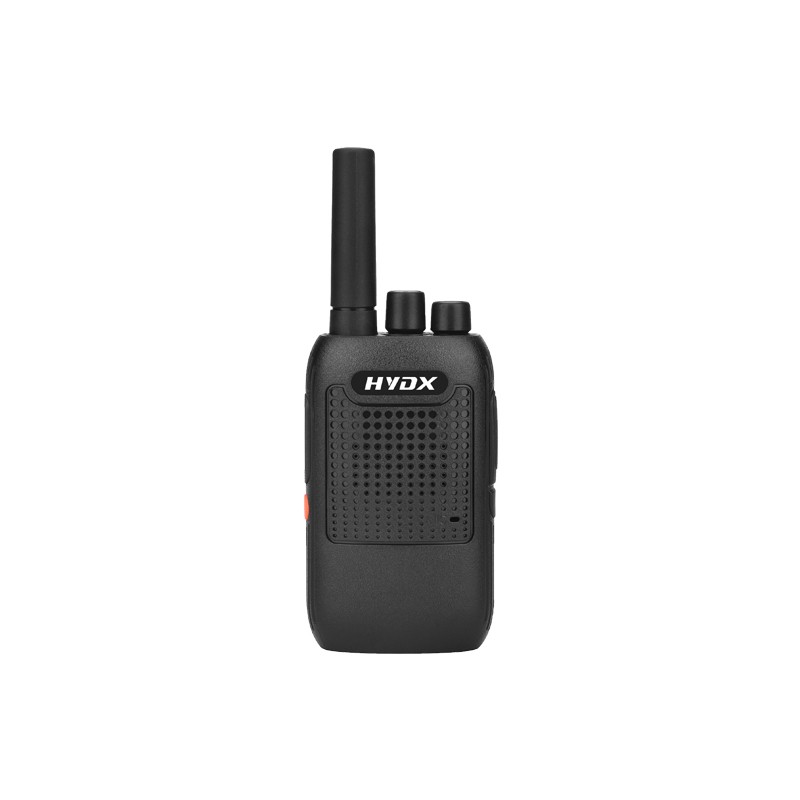

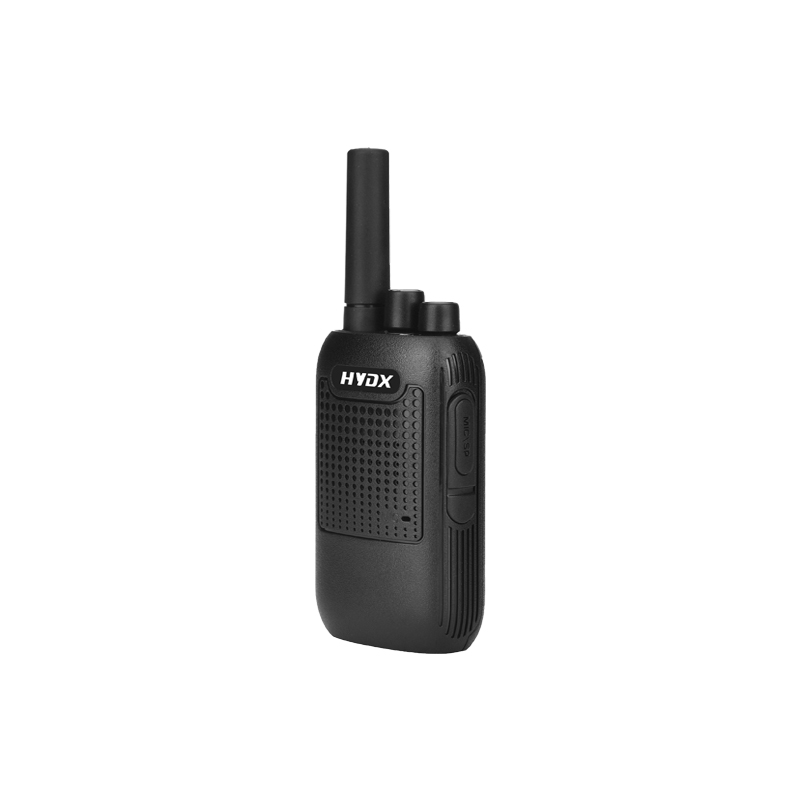

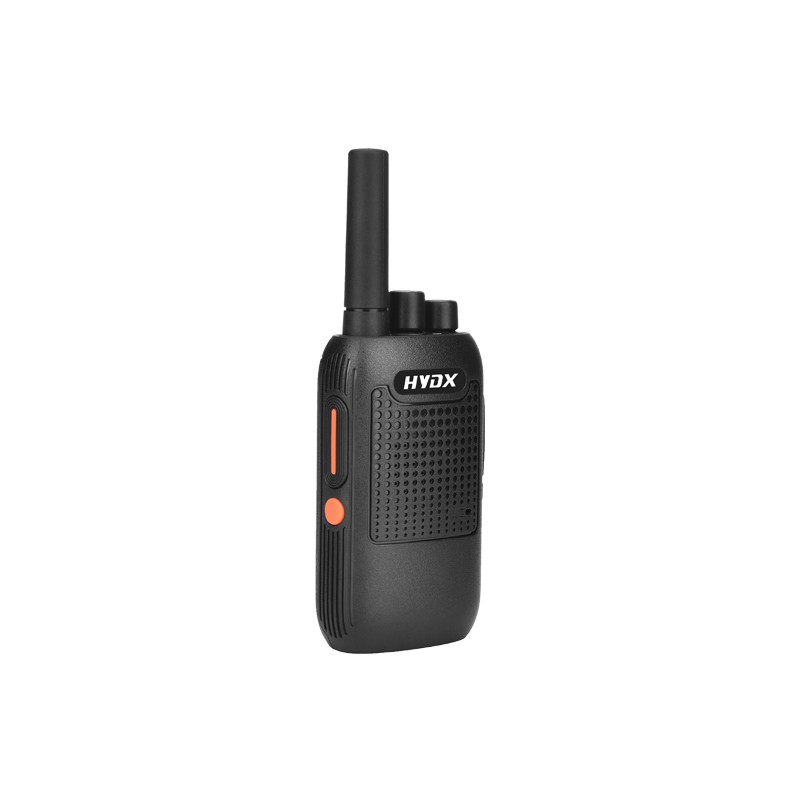

2W UHF FRS Durable Rugged Portable Two Way Radio

Product Description：

·The two way radio is extremely compact and slim for business use; featured with 16 channels and rich features; ensure you use license free radio.
·0-9 level voice activated transmit function allows real hands free operation; adjusting the level according to the environment allows you to get the best audio quality.
·Portable FRS Two-way Radios; license-free; HYDX H1 can work with other FRS radios with 16 channels on the same channel and CTCSS.

·Long Battery Life; with 1200 mAh large capacity Li-ion battery; usually takes 3-4 hours to fully charge; provides up to 24 hours of battery life; allows you to stay in communication through out the day.

Main Functions

1.400-470MHz/136-174MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

7.VOX

8.CTCSS/DCS

9.Power Output 2W

10.Scanning

12.Wide/Narrow Bandwidth

13.Battery Save

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz VHF:136-174MHz
RF Output Power	H:≤2W L:≤0.5W
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 3.7V
Battery Type	1200mAh
Dimension(Excluding antenna)	91.5(H)×53.5(W)×30.3(D)mm
Weight(Battery,Antenna Including)	About 200g
TRANSMITTER
Output Power	H:≤2W L:≤0.5W
Modulation Mode	F3E
Modulation Distortion	≤ 5%
Spurious and Harmonics	-65 dB
FM Noise	≤ -45 dB
RECEIVER
Reference Sensitivity	≤ -121 dBm
Adjacent Channel Selectivity	≤ -50 dB
Inter-modulation response immunity	≤ -55 dB
S/N	≥ 45 dB
Rated Output Power	≤370mW
Rated Audio Distortion	≤5%
