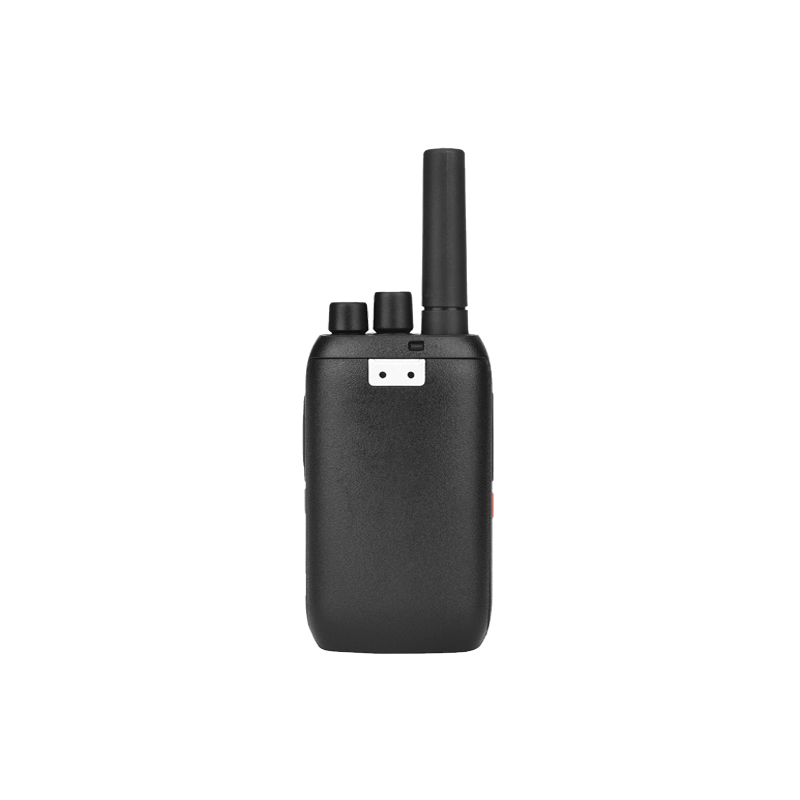

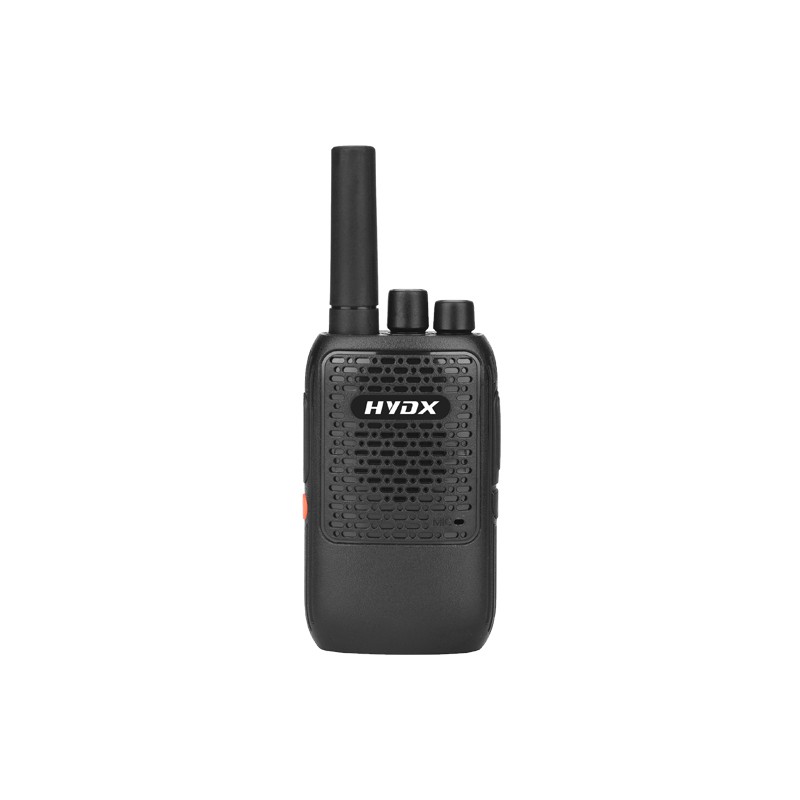

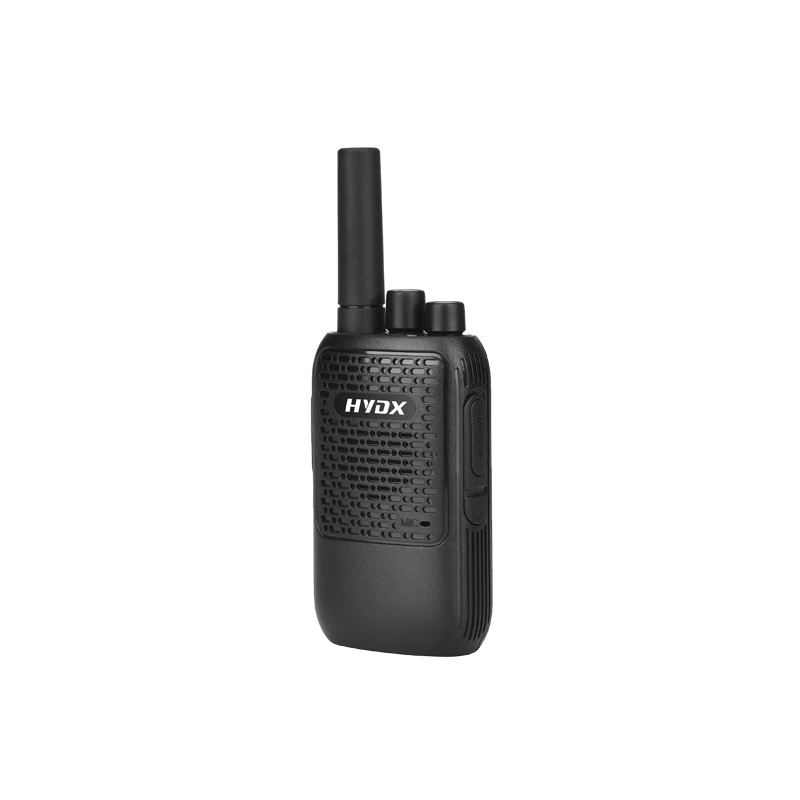

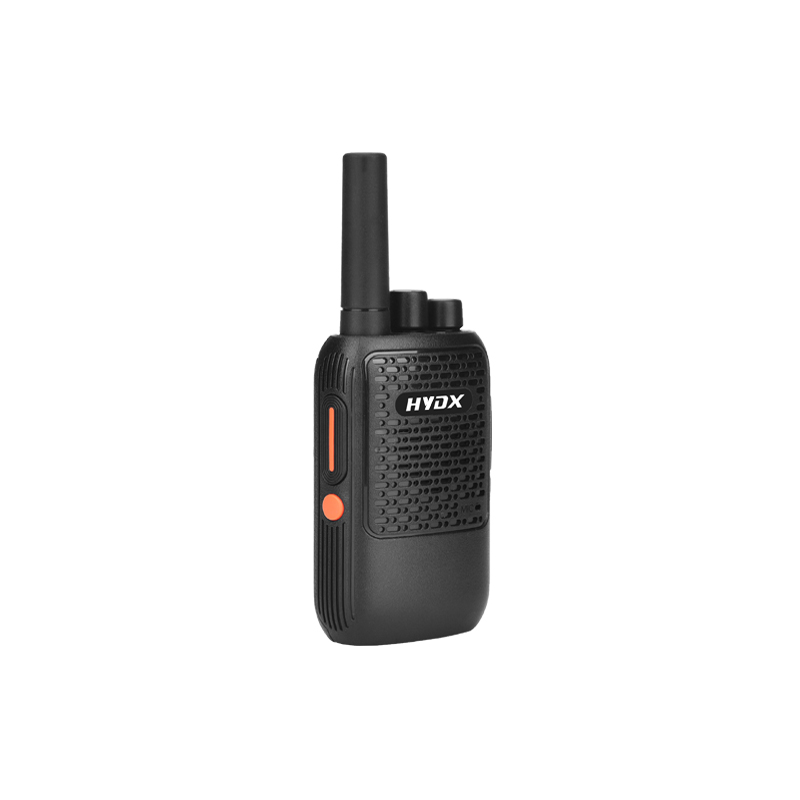

UHF 2W FRS Rugged Commercial Two Way Radio

UHF FRS 2W portable 1200mAh battery type-c rugged commercial two way radio

Brand:
HYDX
Item NO.:
H11
Order(MOQ):
1000
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
30~45
Weight：
200

Inquiry now

Product Detail

Product Description：

·HYDX H11 business walkie talkies feature a compact and light design;can be easily put into the pocket without snagging or bulging.
·Real 1200mAh cold resistant battery provides 12-14 hours of frequent use on a single charge.
·Type-c USB charging cable.

·The durable face shell is resistant to 1.5m drop and comfortable to hold. It is an economical and applicable walkie talkie.

Main Functions

1.400-470MHz/136-174MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

7.VOX

8.CTCSS/DCS

9.Power Output 2W

10.Scanning

12.Wide/Narrow Bandwidth

13.Battery Save

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz VHF:136-174MHz
RF Output Power	H:≤2W L:≤0.5W
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-30℃+60℃
Operating Voltage	DC 3.7V
Battery Type	1200mAh
Dimension(Excluding antenna)	91.5(H)×53.5(W)×30.3(D)mm
Weight(Battery,Antenna Including)	About 200g
TRANSMITTER
Output Power	H:≤2W L:≤0.5W
Modulation Mode	F3E
Modulation Distortion	≤ 5%
Spurious and Harmonics	-65 dB
FM Noise	≤ -45 dB
RECEIVER
Reference Sensitivity	≤ -121 dBm
Adjacent Channel Selectivity	≤ -50 dB
Inter-modulation response immunity	≤ -55 dB
S/N	≥ 45 dB
Rated Output Power	≤370mW
Rated Audio Distortion	≤5%
