Brand:
HYDXItem NO.:
F20Order(MOQ):
1000Payment:
T/T,PayPalProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
45~60Weight:

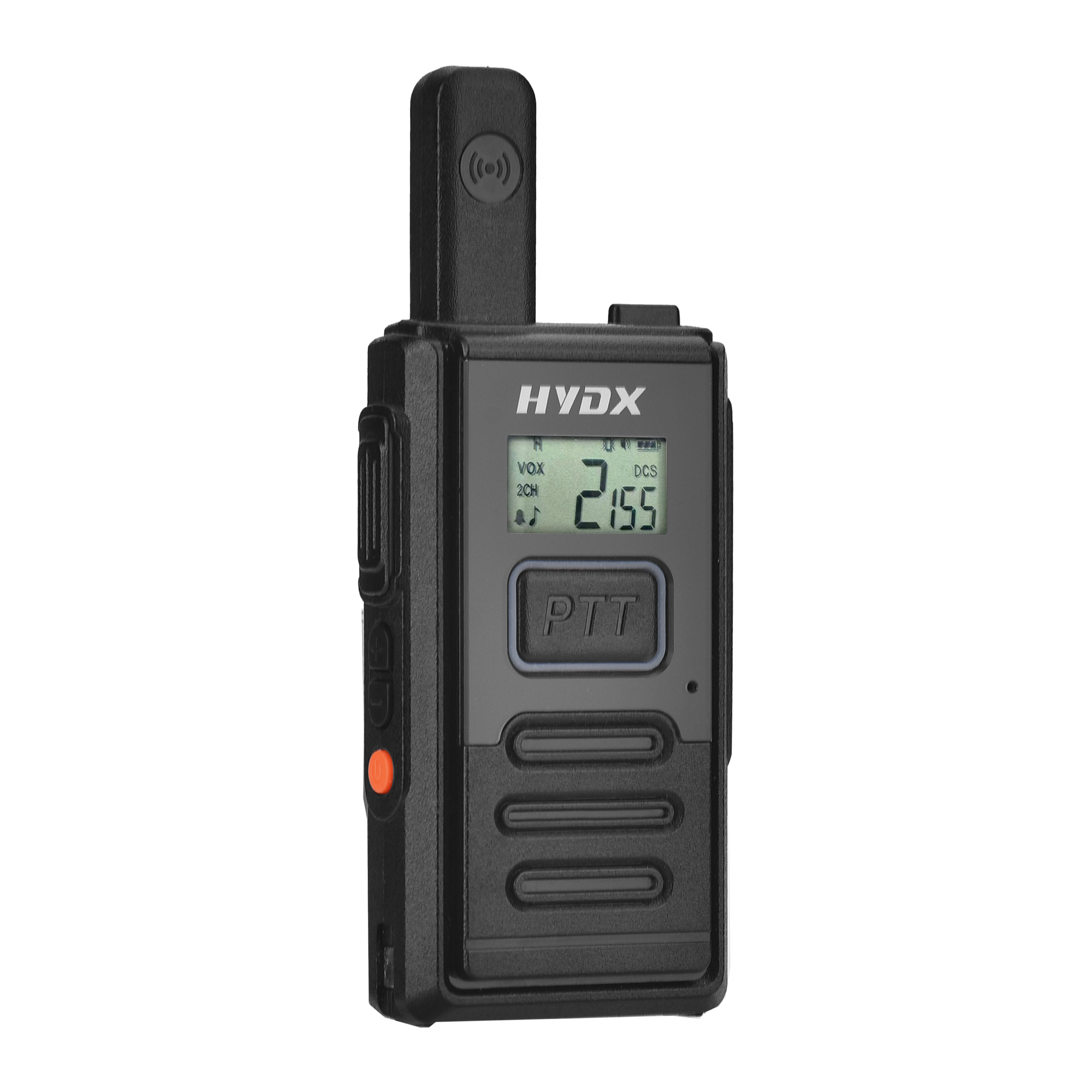

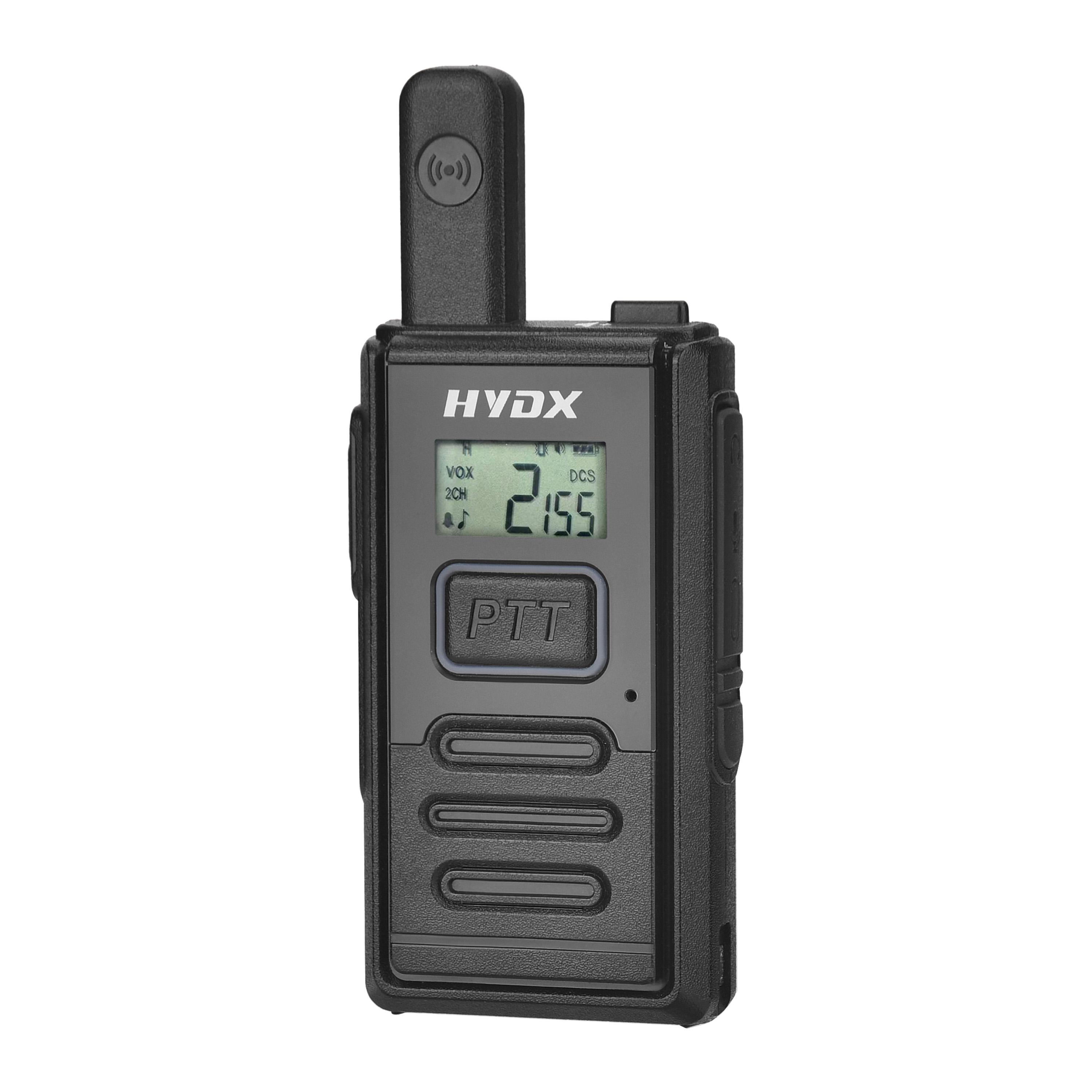

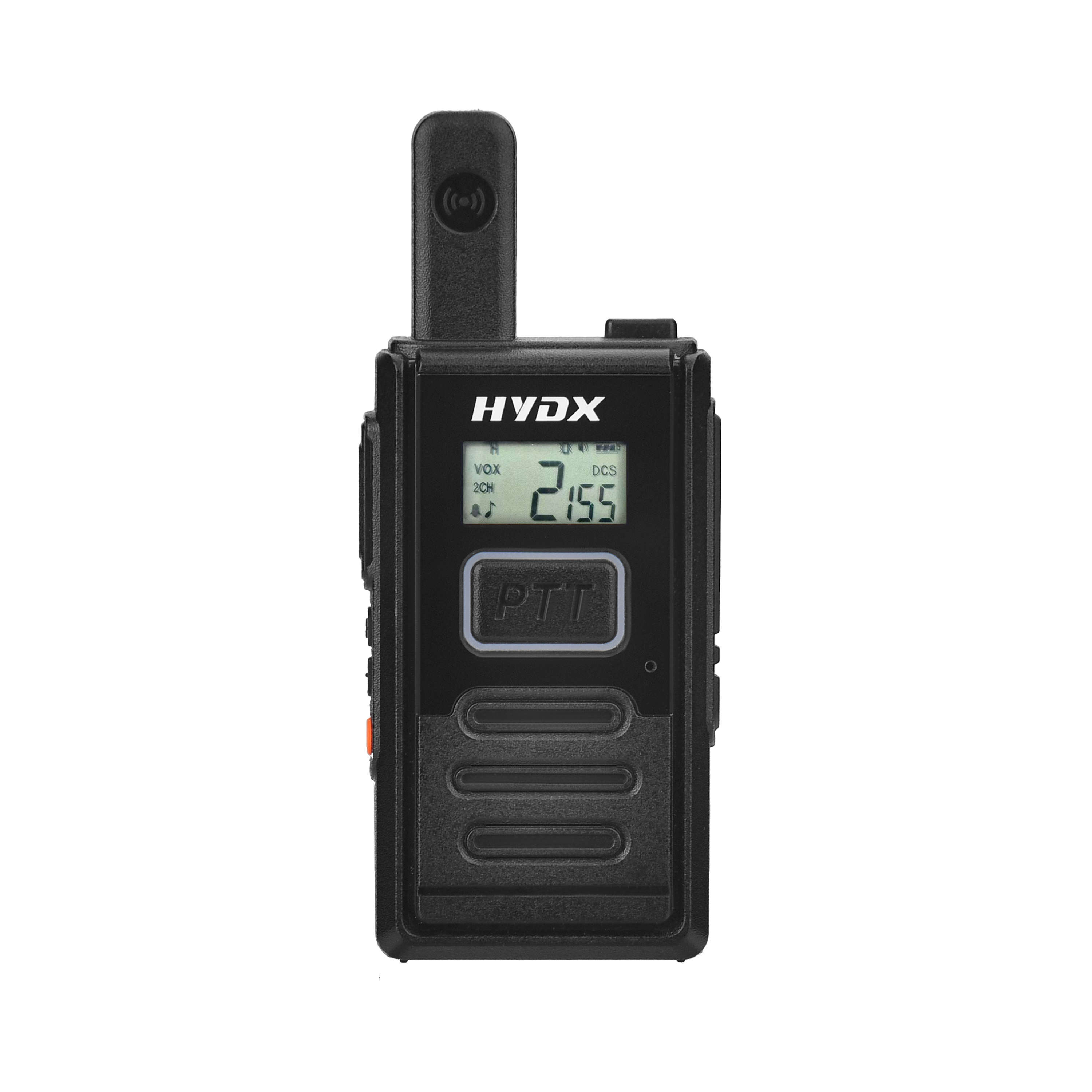

107.1Mini UHF Lightweight Basic LCD 2 Way Radio
Production Description:
·HYDX F20 is a cost-effective product with 1200mAh capacity batteries. It is lightweight, portable and free of license. It can be used indoors and in commercial establishments. Like supermarket/hotel/restaurant/shipping mall/warehouse.
·Small walkie talkies; less than 0.13 inches thick;weighing only 0.22 pounds (Without the accessories); it can be easily held by both adults and children.
·Double PTT design; there is a large PTT button on the front of the walkie talkie; it can easily transmit and receive in winter even with gloves. Also you can programm it to be a “group key” so that can talk with the "Group" channel.
·Rugged belt clip; you can clip it to a belt or backpack; you don’t have to worry about the back clip breaking or deforming.
·1200 mAh Li-ion battery provides 10-12 hours of frequent use on a single charge.
·Vibration function: It can vibrate when receiving signals, preventing you from missing every message.
·Weather forecast (NOAA-North America Only): can remind you of future weather changes.
·Compact;lightweight and easy to use.
Main Functions
1.400-470MHz
2.Scrambler Function
3.Output Power 2W/0.5W
4.99 Channel
5.Monitor
6.CTCSS / DCS
7.VOX
8.Scanning
9.Type-C Charging
10.Double PTT design
11.Vibration Alert
12.NOAA (North America Only)
13.Roger Tone
14.Keylock
15.Group Call
16.Keyboard Tone
17.Call Beep
General Specifications
| GENERAL | |
| Frequency Range |
UHF:400-470MHz |
| RF Output Power | 2W/0.5W |
| Channel | 99 |
| Channel Spacing | Wide:25KHz Narrow:12.5KHz |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Antenna Impedance | 50Ω |
| Operating Temperature | -20℃+60℃ |
| Operating Voltage | DC 3.7V |
| Battery Type | 1200mAh |
| Dimension(Excluding antenna) | 129(H)×55(W)×34(D)mm |
| Weight(Battery、Antenna including) | ABout 107.1g |
| TRANSMITTER | |
| RF Power |
2W/0.5W |
| Carrier Frequency Tolerance | ±800Hz |
| Adjacent Channel Power | ≤ 60dB@12.5kHz |
| Modulation Mode | F3E |
| MIC Sensitivity |
11±2mV |
| Audio Response | +1~3 dB |
| Audio Distortion | ≤5% |
| RECEIVER | |
| Sensitivity | ≤ -123dBm@12dB SINAD |
| Adjacent Channel Selectivity | ≥65 dB |
| RX Current-Rated | <420mA |
| Block |
≥84 dB |
| Rated Output Power | ≤2000mW |
| CSQ Hum&Noise | <-40dB@12.5K |



Packing&Delivery
* 1 x HYDX F20
* 1 x Battery
* 1 x Adapter
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
