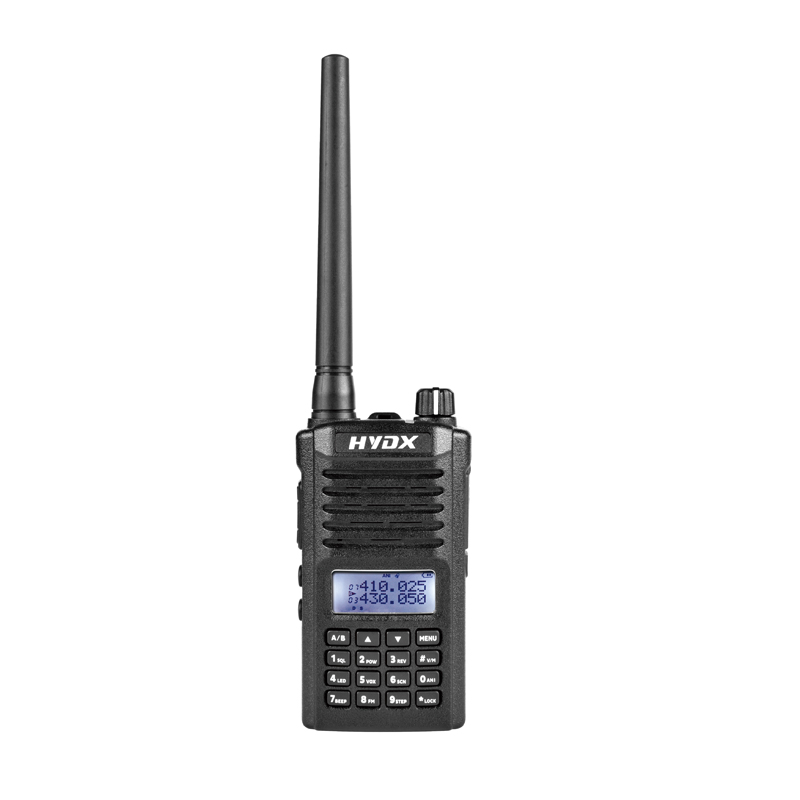

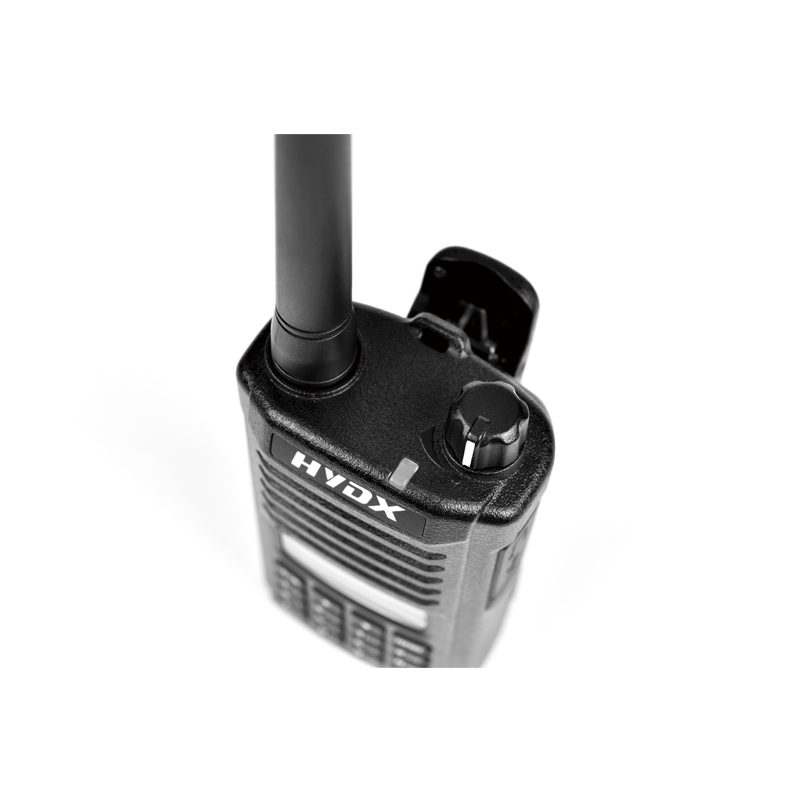

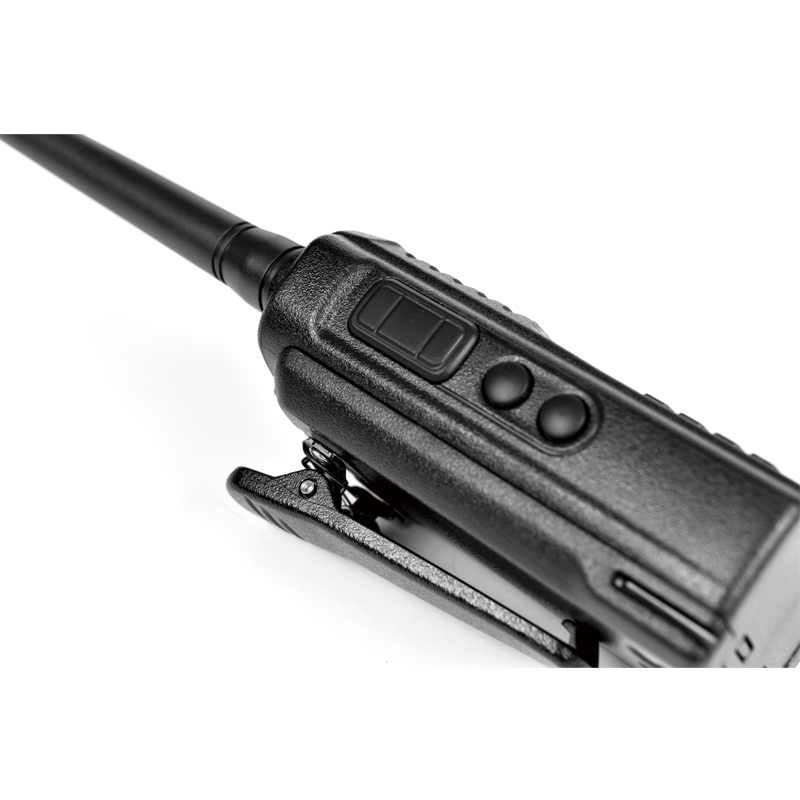

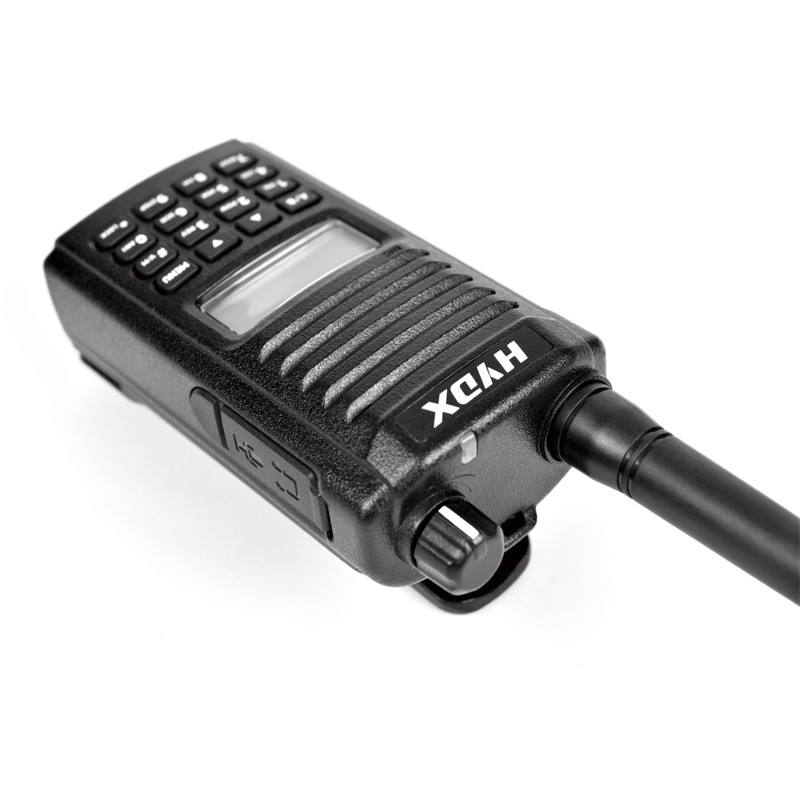

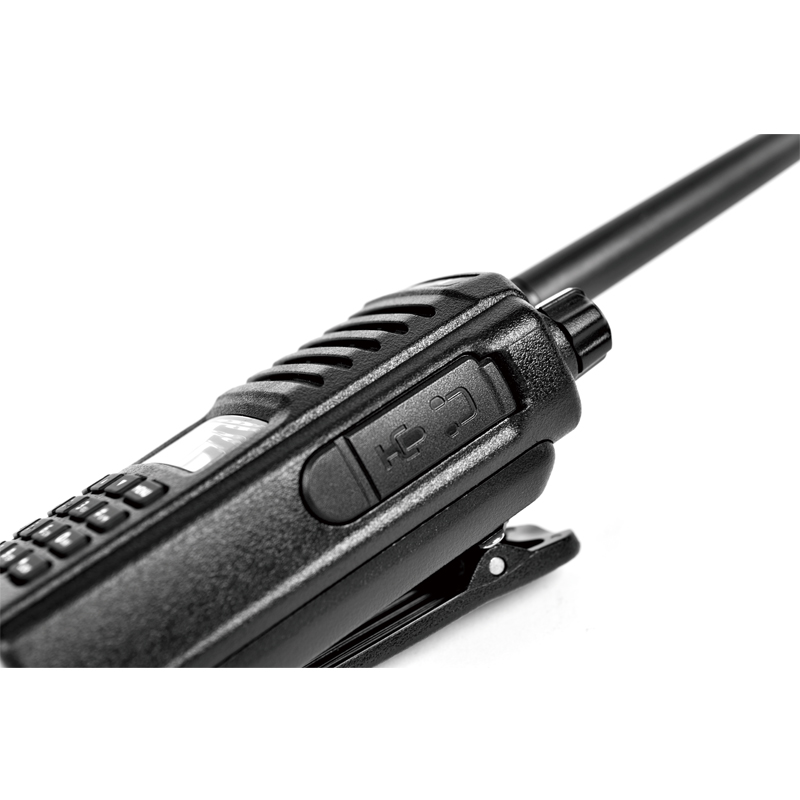

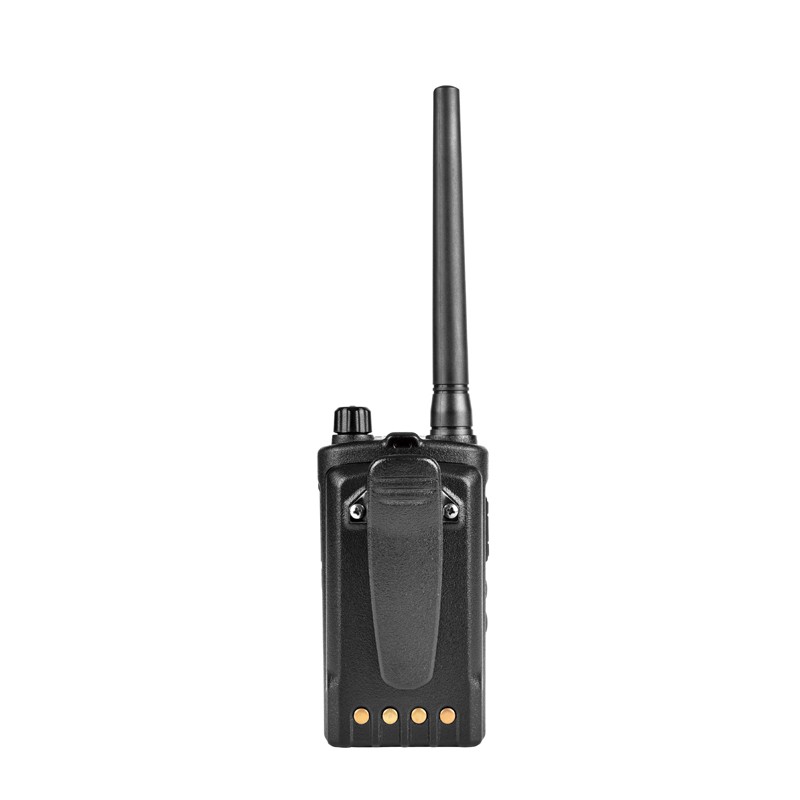

5W UHF Dual Dispaly Portable Handheld Walkie Talkie

5W UHF dual display and standby handheld two way radio

Brand:
HYDX
Item NO.:
A1
Order(MOQ):
200
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
45~60
Weight：
230

Inquiry now

Product Detail

Product Description：

·Dual display and standby, the channel will be 128CH * 2，High / Low Power settings 5W/2W, Frequency Range: VHF: 136-174 MHz，UHF: 400-520 MHz，245MHz; Broad (Wide) / Narrowband (Narrow) Selectable, Is ham radio user and business user top choice.

·Built-in high-power speakers,making the sound very loud and clear when using a radio call. Equipped with a 1600mAh advanced Li-ion battery and multi-function power saving function, The usage time can be up to 24 hours. The standby time can last for 2-4 days.

·Extraordinary clarity, three-color backlit LCD display and backlit keyboard make the radio easy to use during the day or night. Great for Camping, Hiking, Hunting, enjoy your outdoor time.

Main Functions

1.VFO/MR/CH Working Modes

2.Power Password Setting

3.Dual Display and Standby

4.DTMF Encode/Decode

5.Lower Power Alert

6.Reverse Frequency/Offset

7.BCLO

8.Scan/Priority Scan

9.Emergency Alert

10.PTT ID/ANI

11.Tail Elimination

12.VOX/IVOX

13.TOT

14.CTCSS/DCS

Technical Specification

GENERAL
Frequency Range	UHF:400-520MHz/245MHz VHF:136-174MHz
RF Output Power	H:≤5W L:≤2W
Channels	2*128
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-20℃+50℃
Operating Voltage	DC 7.4V
Battery Type	1600mAh
Dimension(Excluding antenna)	112.5(H)×59(W)×37(D)mm
Weight(Battery,Antenna Including)	About 230g
TRANSMITTER
Output Power	H:≤5W L:≤2W
Modulation Mode	F3E
FM Noise	≤ -45 dB
Audio Distortion	≤ 5%
Spurious and Harmonics	-65 dB
RECEIVER
Reference Sensitivity	≤ -123 dBm@25K
Adjacent Channel Selectivity	≤ -65 dB
Inter-modulation response immunity	≤ -55 dB
S/N	≥ 45 dB
Rated Output Power	≤750mW
Rated Audio Distortion	≤5%
