Brand:
HYDXItem NO.:
A21Order(MOQ):
200Payment:
T/T,PayPalProduct Origin:
ChinaColor:
BlackShipping Port:
Xiamen/ShenzhenLead Time:
40~50Weight:

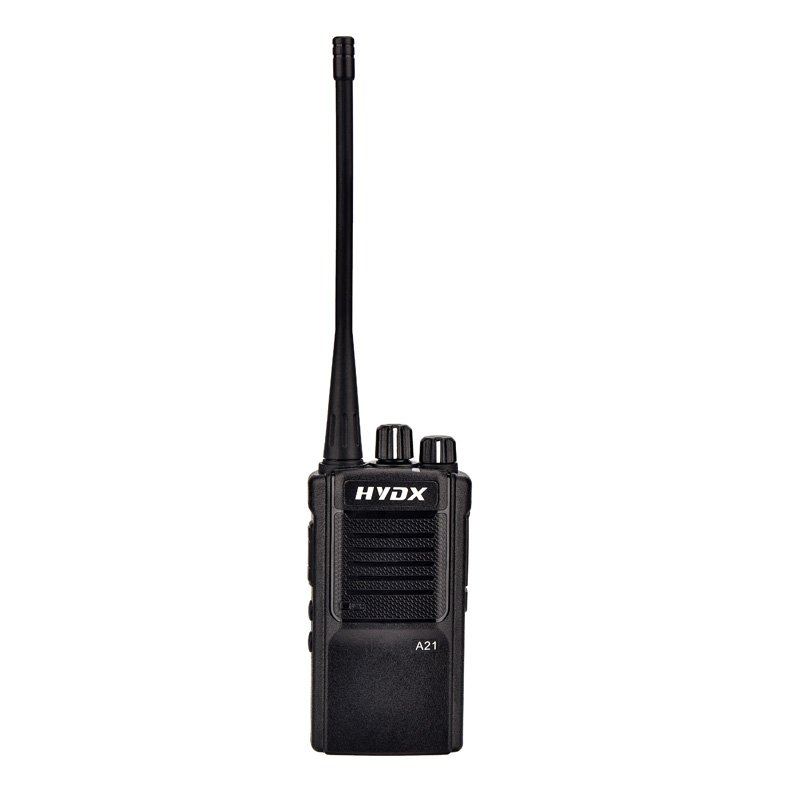

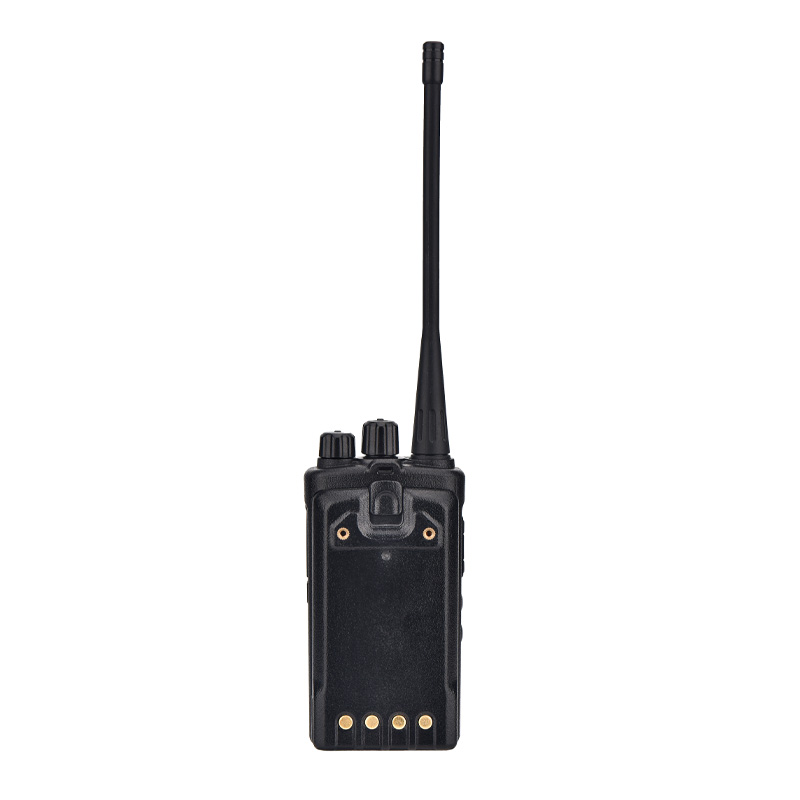

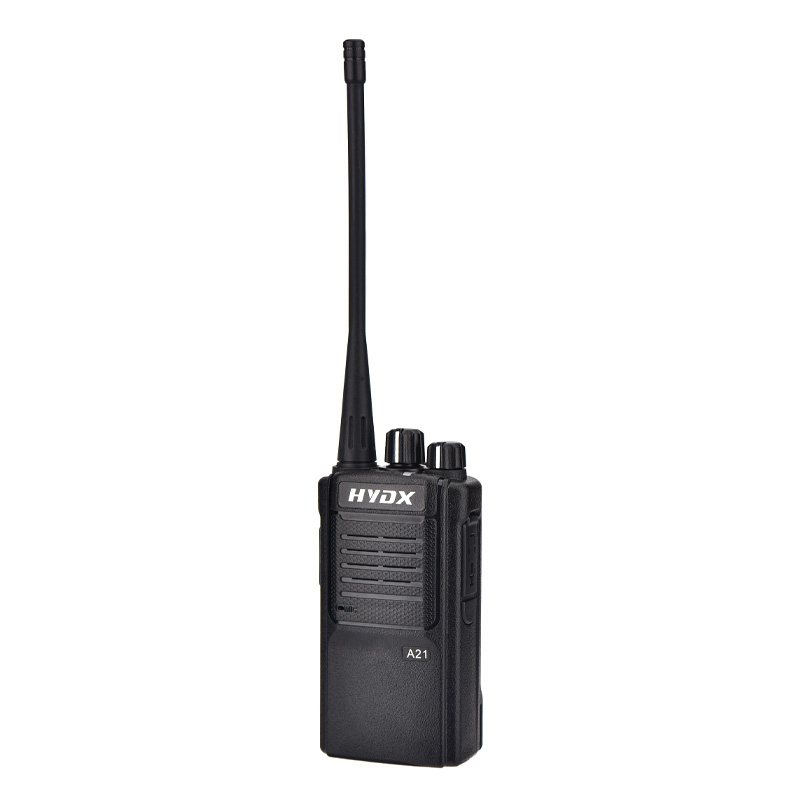

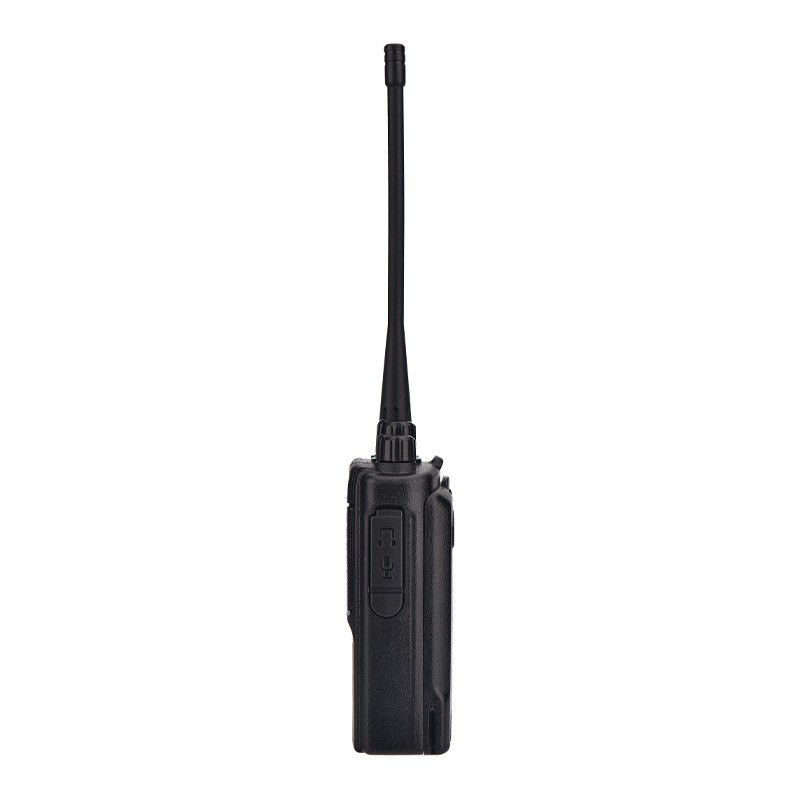

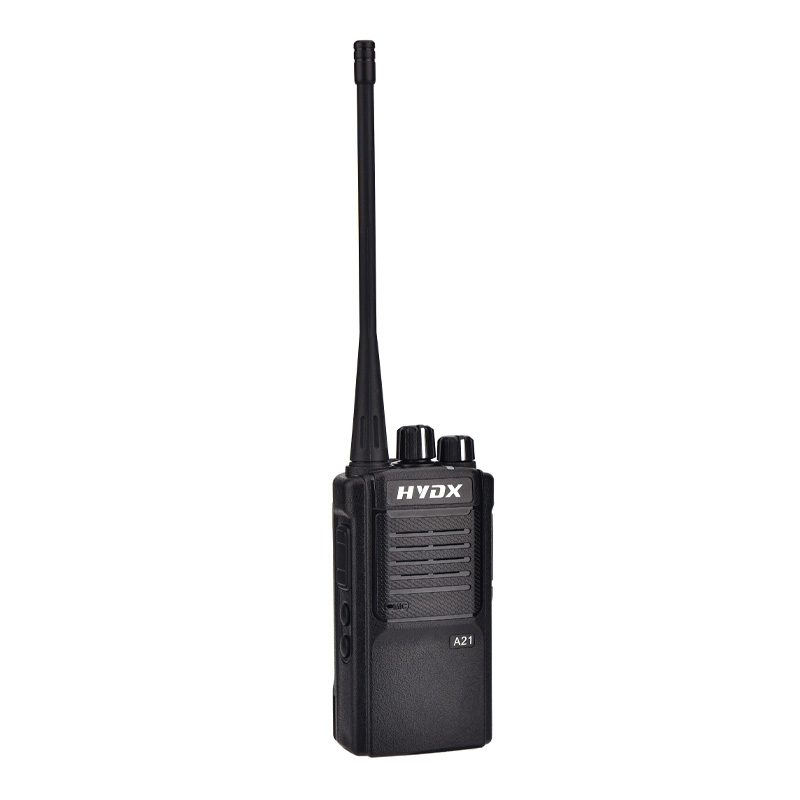

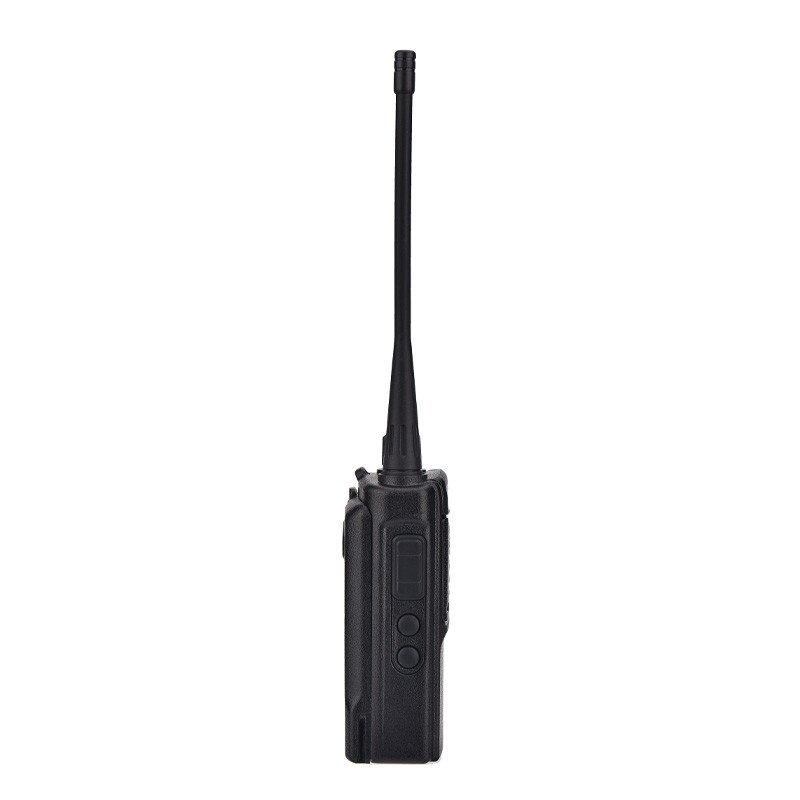

230UHF 5W Portable Two Way Radio Frequency Clone Long Range Walkie Talkie
Product Description:
·HYDX A21 is a high-quality walkie talkie with business design, lightweight, IP54 waterproof, heat and cold resistance. At the same time, it has rich functions to make it easy to do everything.
·16 channels,400-470/136-174MHz.Up to 5 miles range in open area without obstructions (as rural areas, suburbs or seaside). If in cities or towns, reach 0.5-3 miles(Exactly depends on your surroundings). Using 16 position rotary channel switch to change the different channel. The channel frequency can be programmed in the frequency range, you can program any of 50 CTCSS tones and 105 DCS tones on each programmed channel; Easy to use for adult.
·1600mAh/2000mAh (optional) Li-ion rechargeable battery. Large capacity battery allow you can charge 2-3 hours then use it for 8-9 hours continuous use.
·Clone Mode; As an upgraded version,A21 radio supports pairing frequency of multiple same model walkie talkies, to bring convenience to group travel for multiple people.
·Digital Anti Cracking;Can achieve anti cracking function to avoid receiving illegal signals.
Main Functions
1.136-174MHz/400-470MHz
2.High/Low Power
3.Group Calling
4.Detection Frequency
5.Digital Anti Cracking
6.Clone Mode
7.Emergency Alarm
8.Monitor
9.Scanning
10.VOX
11.DTMF
12.Compandor
13.BCLO
14.Scrambler
15.Frequency Hopping
Technical Specification
GENERAL |
|
Frequency Range |
UHF:400-470MHz VHF:136-174MHz |
Channels | 16 |
Channel Spacing | Wide:25KHz Narrow:12.5KHz |
CTCSS/DCS | 50 CTCSS / 105 DCS |
Antenna Impedence | 50Ω |
Operating Temperature | -20℃+50℃ |
Operating Voltage | DC 7.4V |
Battery Type | Li-ion |
Battery Capacity | 1600mAh/2000mAh (optional) |
Audio Power Output | ≤2W@16Ω |
Dimension (Excluding antenna) | 112.5(H)×59(W)×37(D)mm |
Weight (Battery,Antenna Including) | About 230g |
TRANSMITTER |
|
Carrier Output Power |
H:≤5W L:≤1W |
Modulation Mode | F3E |
FM Noise |
≤ -45 dB |
Audio Distortion | ≤ 5% |
Spurious and Harmonics | -65 dB |
RECEIVER | |
Reference Sensitivity | ≤ -123 dBm@25K |
Adjacent Channel Selectivity | ≤ -65 dB |
Inter-modulation Response Immunity | ≤ -55 dB |
S/N |
≤-55 dB |
Packing&Delivery
Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.
* 1 x HYDX A21
* 1 x Antenna
* 1 x Battery
* 1 x Charger
* 1 x Belt Clip
* 1 x Hand Strap
* 1 x User Manual
* 1 x Adapter
