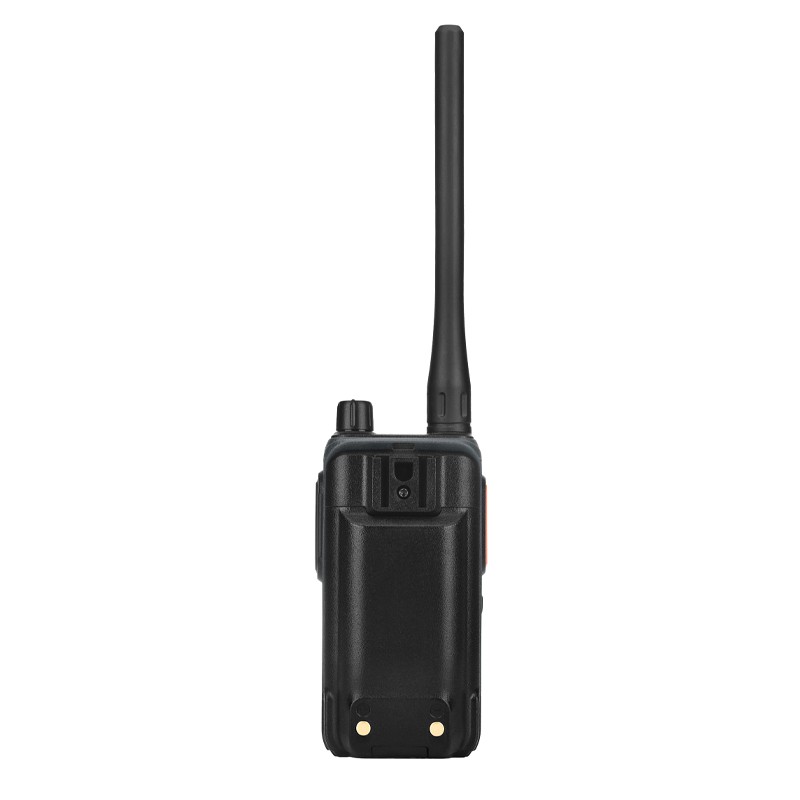

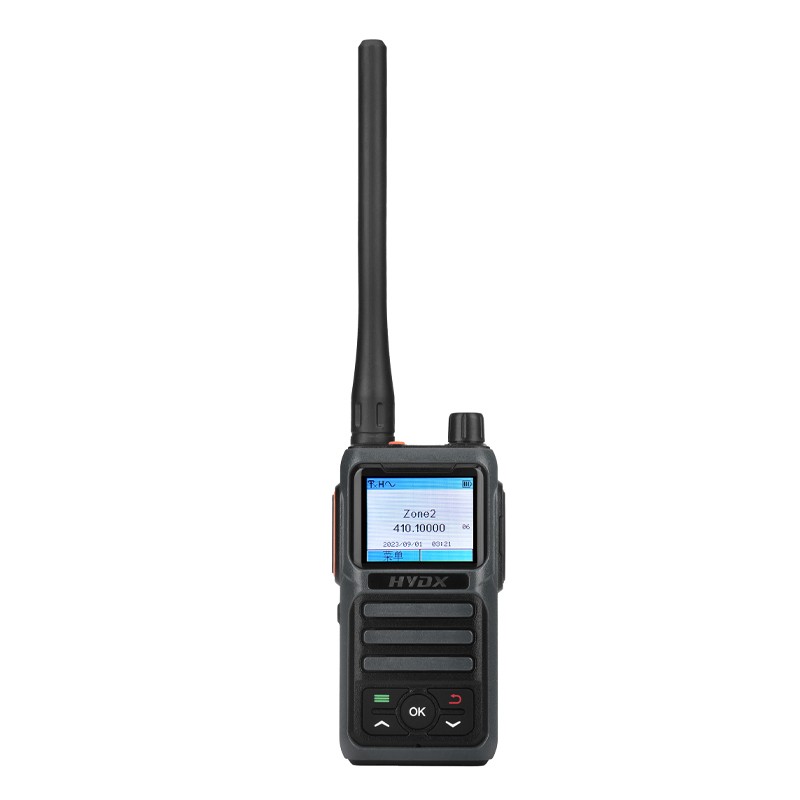

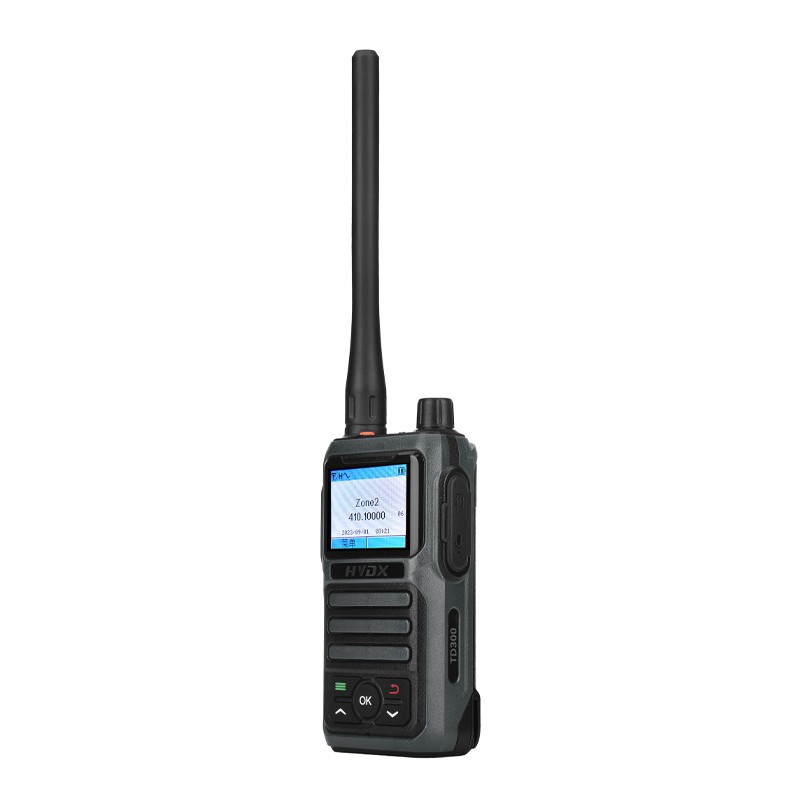

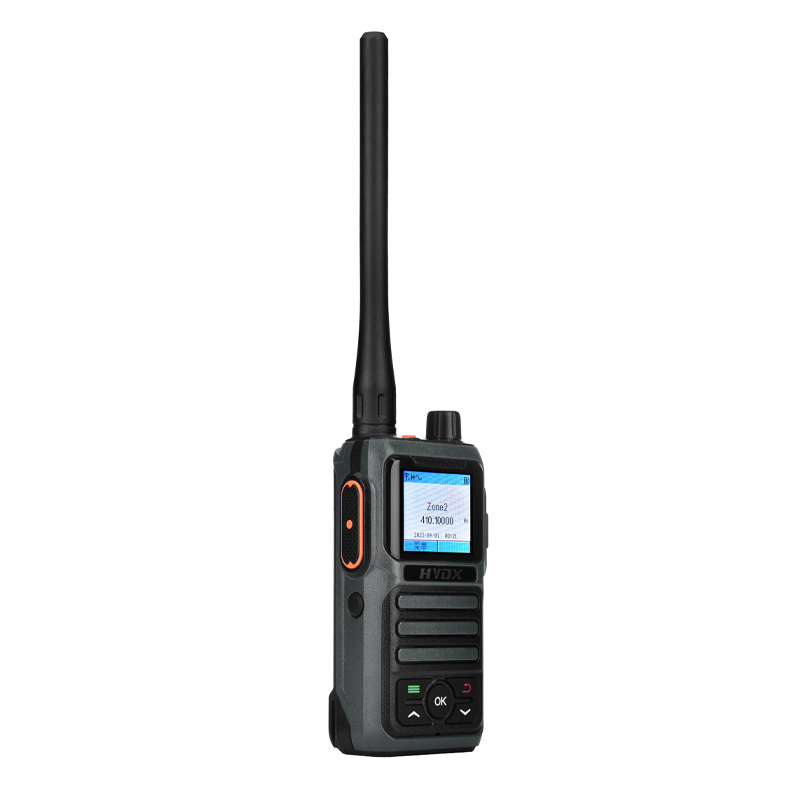

5W Dual Color 3000mAh Long Standby Time Encrypted Handheld Radio DMR Radio

5W, dual color 400-470MHz,2200mAh/3000mAh, DMR Radio,1024 channels capacity
  • Brand:

    HYDX
  • Item NO.:

    TD300
  • Order(MOQ):

    500
  • Payment:

    T/T,PayPal
  • Product Origin:

    China
  • Color:

    Black/Grey
  • Shipping Port:

    Xiamen/Shenzhen
  • Lead Time:

    45-60
  • Weight:

    270

5W Dual Color 3000mAh Long Standby Time Encrypted Handheld Radio DMR Radio


Product Description:

·Secure and clear commmunication; compared with the surrounding busy public frequency bands; it has a very safe and uncrowded communication channel.
·Support DMR digital and analog two methods; you can be compatible with most two way radio by setting the frequency; the TD300 two way radio could play a transitional role when replacing your old two way radios.
·Simple operation; sturdy and durable body 2 way radio; an excellent commercial walkie talkie; suitable for use in consturction site;supermarkets;warehouses and other workplaces.
·The 1.77-inch display can show you more functional information.
·Support group call and all call; a total of 1024 channels in 250 zones; you can set multiple groups to call your colleagues and friends separately.
·The digital frequency walkie talkie has a clearer sound quality; at the same time; the dual time slot function can realize two groups of independent calls on the same channel; saving frequency resources.
·2200mAh/3000mAh (optional) battery; offers 17 hours of standby time; power saver mode helps increase efficiency and preserve battery life.
·Handheld and portable radio; belt Clip and hand strap; easy to carry and secure; allows you to attach to belts and pockets; frees your hands.


Main Functions

1.400-470MHz

2.Stored 1024 Channels Capacity

3.1024 Digital Contacts

4.Digital Encryption

5.Private/Group/All Call

6.Digital/Analog Mode

7.Emergency Alarm

8.Monitor

9.Battery Save

10.Scanning

11.VOX

12.Alone Worker

13.DTMF

14.Recording

15.Bluetooth (optional)


Technical Specification

GENERAL
    Frequency Range

    UHF:400-470MHz

    Channel Capacity     1024
    Channel Spacing     12.5kHz
    Operating Voltage     DC 7.4V
    Battery Type     18650
    Battery Capacity     2200mAh/3000mAh (optional)
    Output Current     400mA
    Charging Time     4-6 hours
    Battery Life@5/5/90

    Analog:12h/Digital:16h

    Operating Temperature     -20℃+50℃
    Audio Power Output     ≤1W@16Ω
    Dimension     124(H)×58(W)×40(D)mm
    Weight     About 270g
TRANSMITTER
    Carrier Output Power

    H:≤4W

    L:≤1W

    Carrier Frequency Tolerance     ≤±300Hz@200~500Hz
    Adjacent Channel Power

    ≥60dB@12.5kHz

    ≥65dB@25kHz

    Modulation Mode

    11K0F3E@Analog (FM)

    12.5kHz Data/Voice:7K60FXW@4FSK Digital
    12.5kHz Data:7K60FXD@4FSK Digital

    TX FSK Error     ≤5%
    Audio Distortion     ≤5%
RECEIVER
    Static Sensitivity     ≥ -117dBm(Eer≤5%)
    Co-Channel Inhibition     ≥-12dB
    Adjacent Channel Selectivity

    >60dB@12.5kHz

    >65dB@25kHz

    Inter-modulation Response Rejection      ≥50dB
    Blocking      ≥84dB
    Receiver Spurious Emission

    <-57dBm@[<1GHz]

    <-47dBm@[>1GHz]


Packing&Delivery


Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.


*  1 x HYDX TD300


*  1 x Antenna


*  1 x Battery


*  1 x Charger


*  1 x Belt Clip


*  1 x Hand Strap


*  1 x User Manual


*  1 x Adapter
