UHF High Power Reliable Rugged Two Way Radio

10W UHF High Power Longe Range Work Outdoor Handheld Radio
  • Brand:

    HYDX
  • Item NO.:

    Q609
  • Order(MOQ):

    200
  • Payment:

    T/T,L/C,Credit Card,PayPal,Western Union,Cas
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Xiamen/Shenzhen
  • Lead Time:

    45~60
  • Weight:

    280

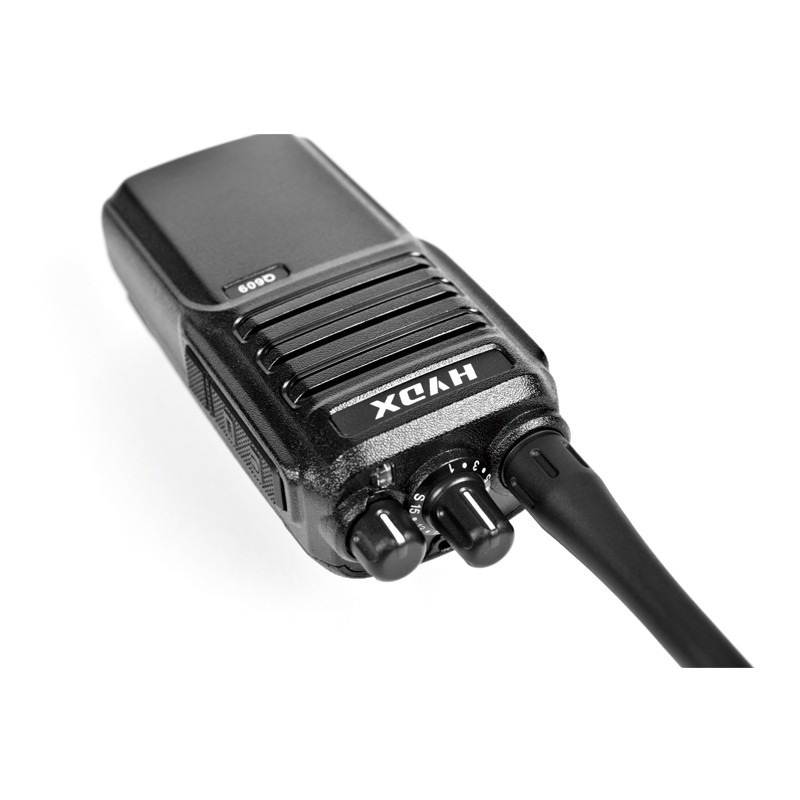

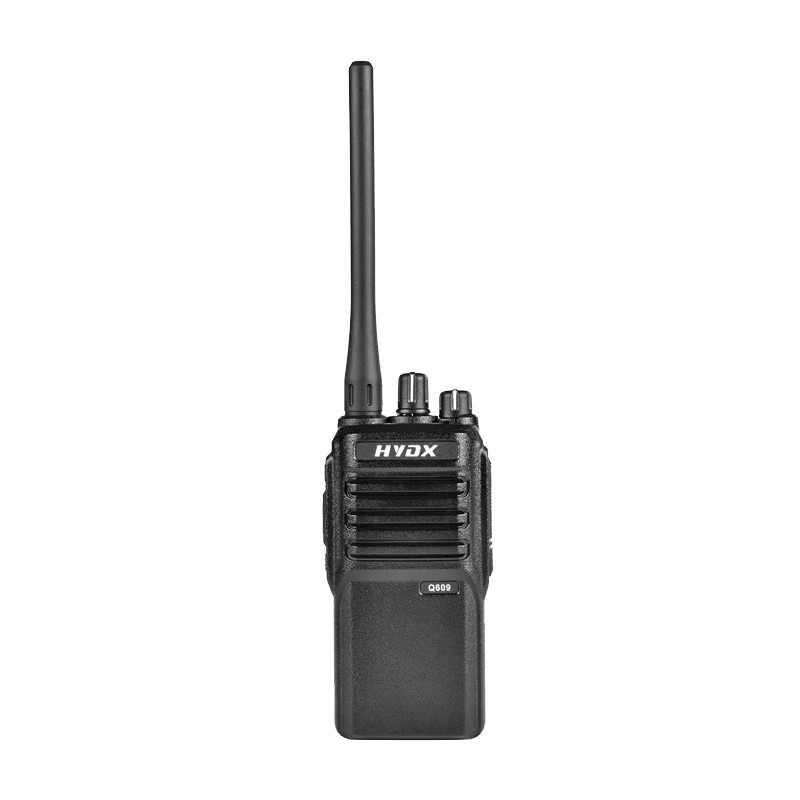

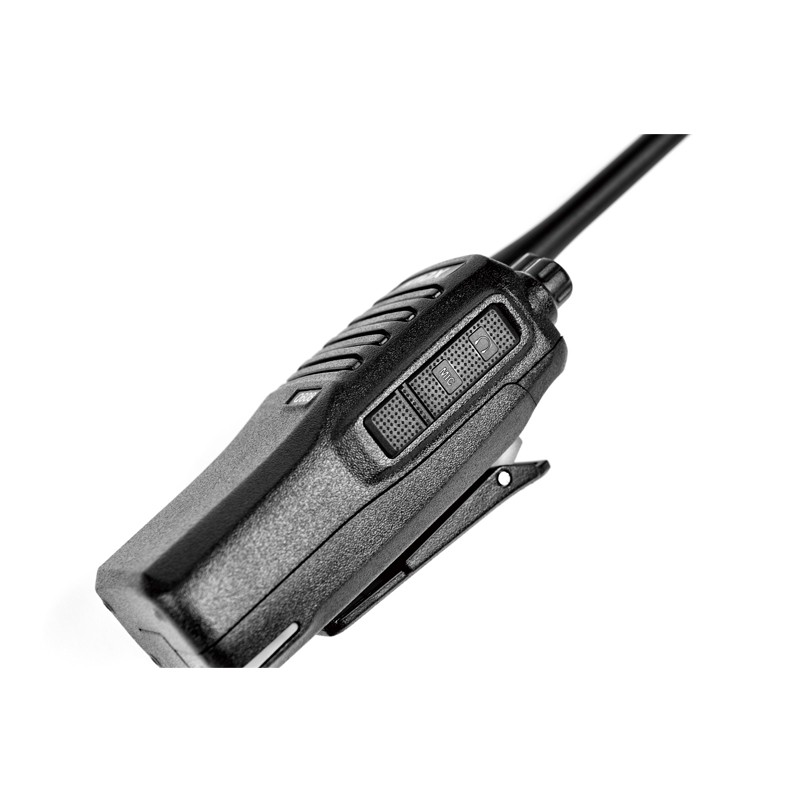

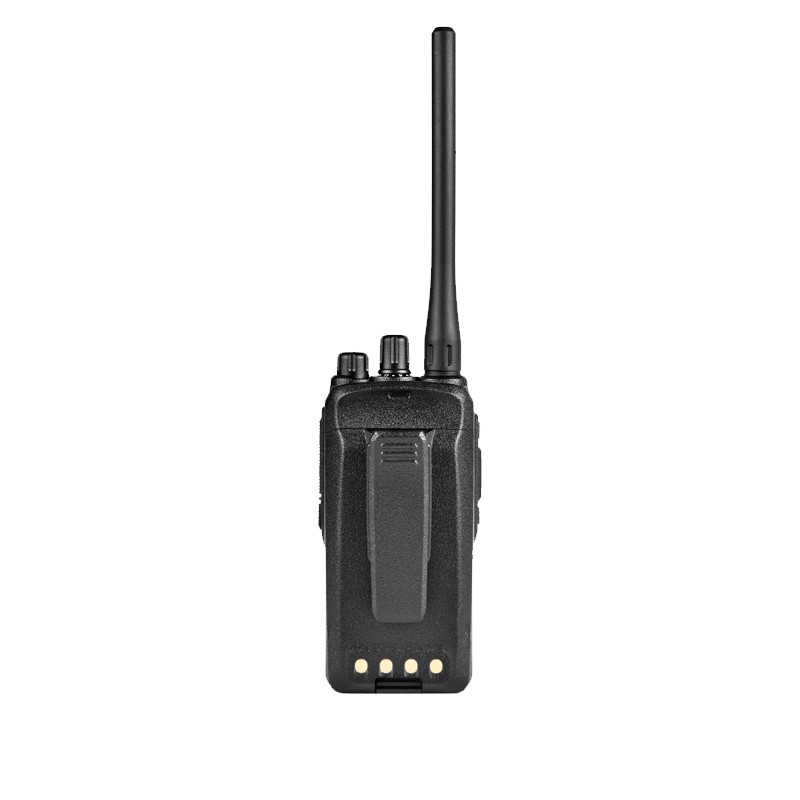

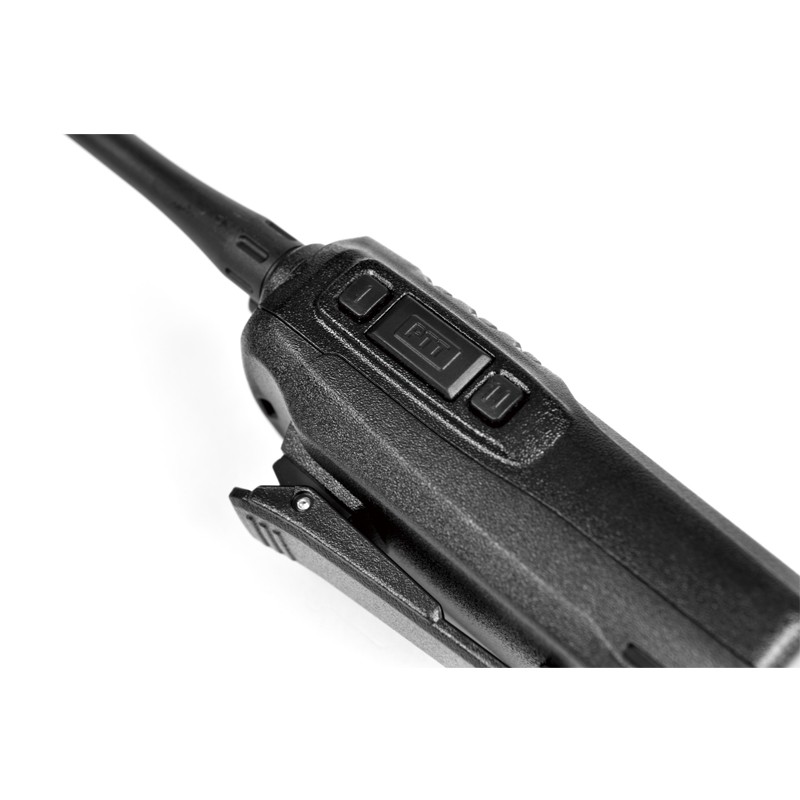

UHF High Power Reliable Rugged Two Way Radio


Product Description

·As Juston's flagship product, Q609 is a walkie talkie with high power and high-capacity battery, business appearance and rich functions.

·High power and U band portable heavy duty 2 way radios features extremely strong obstacle penetration ensuring you have long distance talk up to 5 miles in urban work and mountainous survival.

·Rugged design eliminate the intrusion of dust.

·Squelch blocking background noise and other conversations enable you have crystal clear sound transmission without static and distortion under its range.

·2800 mAh Large battery capacity give you 5~7 days standby time.

·Good reception and crystal transmission sound; strong penetration and audio keep you and your team always stay in contact with loud clarity sound quality in building or outdoor.


Main Functions

1.VOX

2.SOS

3.Scan

4.1750Hz

5.Scrambler

6.Compandor

7.Battery Save

8.Tail Elimination

9.Battery Report

10.High/ Low Power

11.PC Programmable

12.Wide/Narrow Band

13.SK Programmable

14.Chinese/English Voice Report

15.CTCSS/DCS Support Non-standard


Technical Specification

GENERAL
    Frequency Range

    UHF:400-470MHz

    VHF:136-174MHz

    RF Output Power     H:10W±1W   L:5W±0.5W
    Channels     16
    Channel Spacing     Wide:25KHz   Narrow:12.5KHz
    CTCSS/DCS     50 CTCSS / 105 DCS
    Antenna Impedence     50Ω
    Operating Temperature     -20℃+50℃
    Operating Voltage     DC 7.4V
    Battery Type     2800mAh
    Dimension(Excluding antenna)     132(H)×61(W)×43(D)mm
    Weight(Battery,Antenna Including)     About 280g
TRANSMITTER
    Output Power

    H:10W±1W

    L:5W±0.5W

    Modulation     F3E
    Modulation Sensitivity     12±5 mV
    Adjacent Channel Power

    ≤-65 dB(Wide)

    ≤-55 dB(Narrow)

    Modulation Distortion     ≤5%
    Transmit Spurious Emission     ≤-65 dB
RECEIVER
    Reference Sensitivity     ≤-122 dBm
    Adjacent Channel Selectivity     ≥65 dB
    Inter-modulation     -55 dB
    S/N

    ≥50 dB (Wide)

    ≤-40 dB (Narrow)

    Rated Output Power     ≤1W
    Rated Audio Distortion     ≤5%
Packing&Delivery


Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.


*  1 x HYDX Q609


*  1 x Antenna


*  1 x Battery


*  1 x Charger


*  1 x Belt Clip


*  1 x Hand Strap


*  1 x User Manual
