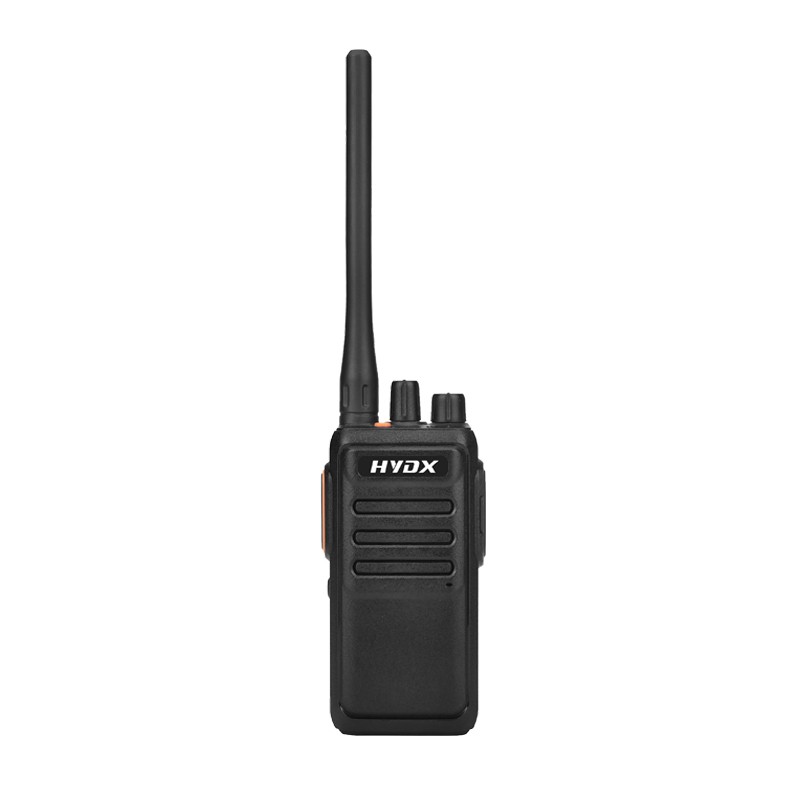

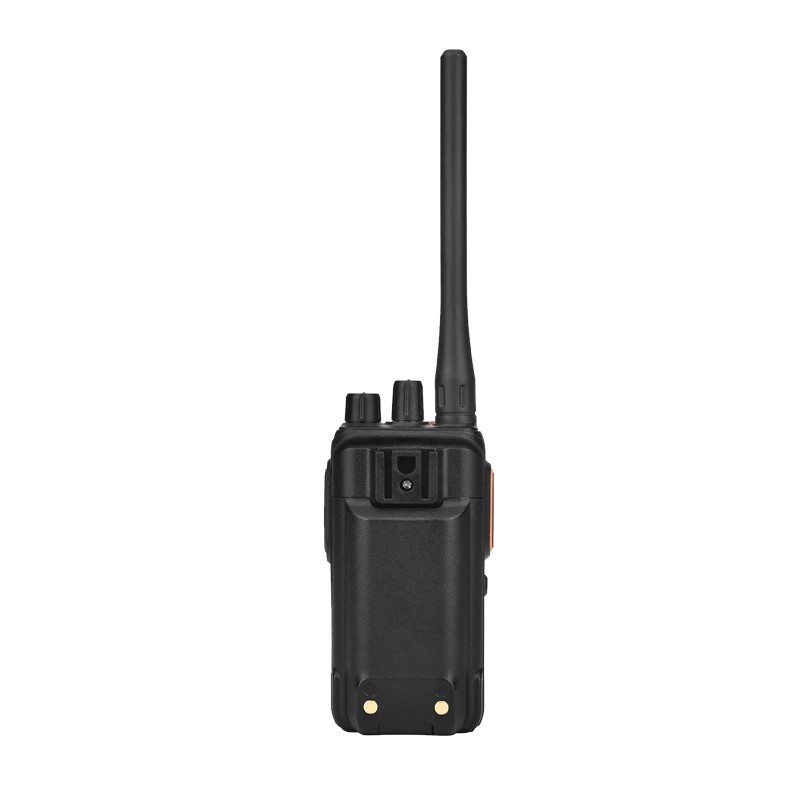

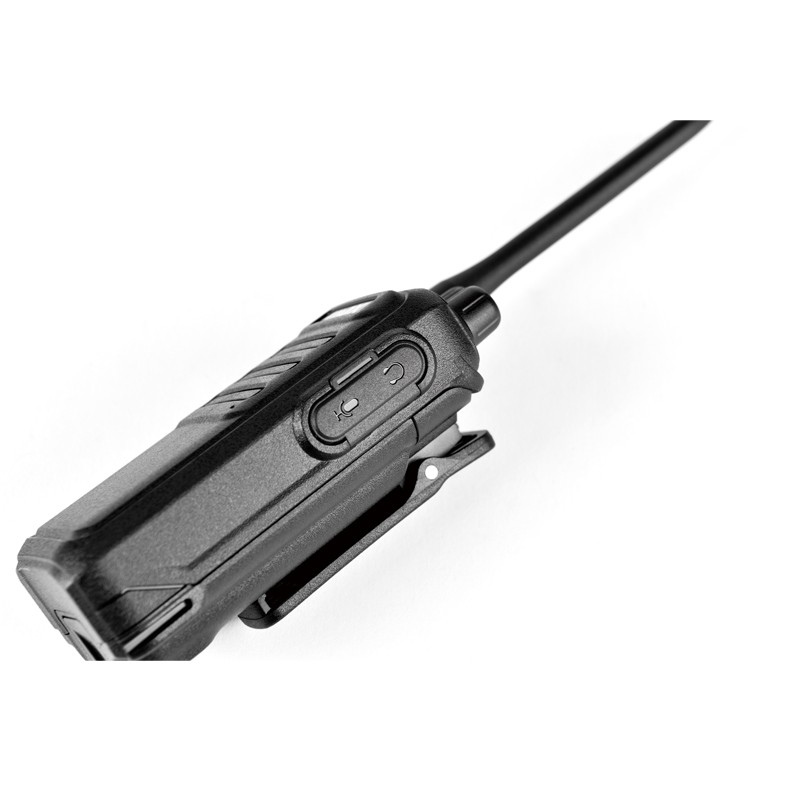

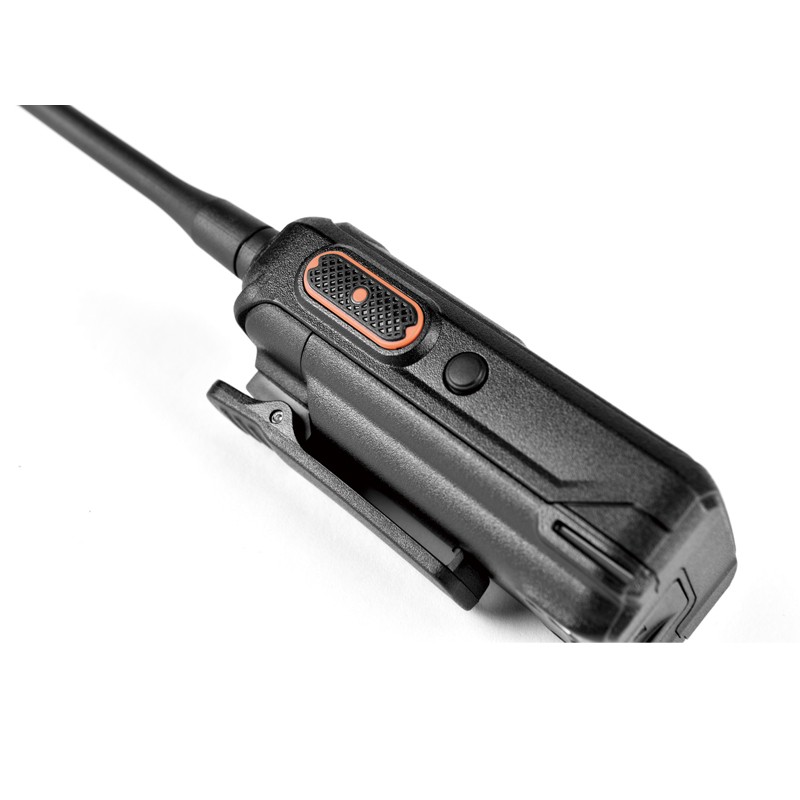

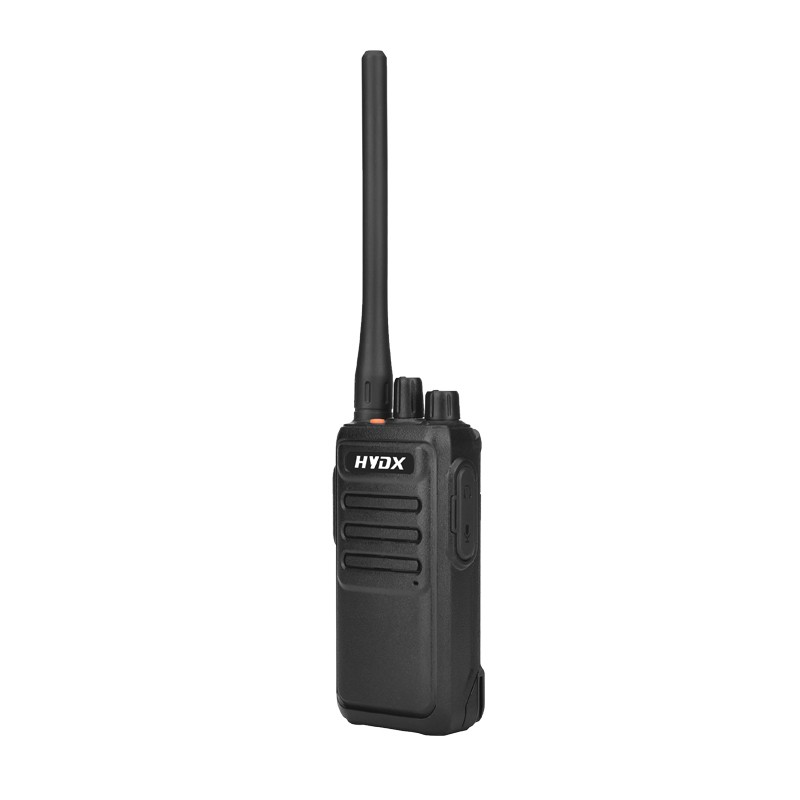

10km UHF Handheld Portable Two Way Radio

UHF portable handheld 8W 2200mAh wireless communication two way radio
  • Brand:

    HYDX
  • Item NO.:

    A800
  • Order(MOQ):

    200
  • Payment:

    T/T,L/C,Credit Card,PayPal,Western Union,Cas
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Xiamen/Shenzhen
  • Lead Time:

    45~60
  • Weight:

    230

10km UHF Handheld Portable Two Way Radio


Product Description:

·HYDX A800 has stable performance, high power and large capacity battery, and supports HYDX-A518 dual color housing. Very cost-effective, can be used in public areas, outdoor and other places.

·Long range with perfect size make them easy to hold; super compact for long life using; gets long range with the included antenna and exceptional 2200 mAh rechargeable Li-ion battery; each radio includes its accessory

·VOX Mode for hands-free provides great reception and transmit clarity to keep on communicate with fellow co-worker;you can attach the radio to the belt and clip the earphones to the colla

·Worry-free day night shift with a large-capacity 2200mAh Li-ion rechargeable battery;up to 20 hours of battery life per charge.


Main Functions

1.400-470MHz/136-174MHz

2.Chinese/English voice report

3.High/Low Power Switchable

4.Compandor

5.Scrambler

6.16 Channels

7.VOX

8.CTCSS/DCS

9.BCLO

10.Scan

12.Wide/Narrow Band

13.VOX


Technical Specification

GENERAL
    Frequency Range

    UHF:400-470MHz

    VHF:136-174MHz

    RF Output Power     H:≤8W   L:≤2W
    Channels     16
    Channel Spacing     Wide:25KHz   Narrow:12.5KHz
    CTCSS/DCS     50 CTCSS / 105 DCS
    Antenna Impedence     50Ω
    Operating Temperature     -30℃+60℃
    Operating Voltage     DC 7.4V
    Battery Type     2200mAh
    Dimension(Excluding antenna)     124(H)×58(W)×39(D)mm
    Weight(Battery,Antenna Including)     About 230g
TRANSMITTER
    Output Power

    H:≤8W

    L:≤2W

    Modulation Mode     F3E
    Modulation Sensitivity

    12±5mV

    Modulation Distortion     ≤ 1%
    Frequency Stability     ±1.5×10-6ppm
    Adjacent Channel Power     ≥ 65 dB
RECEIVER
    Reference Sensitivity     ≤ -122 dBm
    Adjacent Channel Selectivity     ≥ 55 dB
    Inter-modulation response immunity     ≥ 55 dB
    Block

    ≥ 84 dB

    Rated Output Power     ≤1000mW
    Rated Audio Distortion     ≤5%
Packing&Delivery


Two-way Radio Walkie Talkie Gift Box, 10 pcs / carton.


*  1 x HYDX A800


*  1 x Antenna


*  1 x Battery


*  1 x Charger


*  1 x Belt Clip


*  1 x Hand Strap


*  1 x User Manual
