4G LTE Cat1 GPS REALPTT Platform POC Radio

4G Cat1 HANDHELD PORTABLE POC Radio

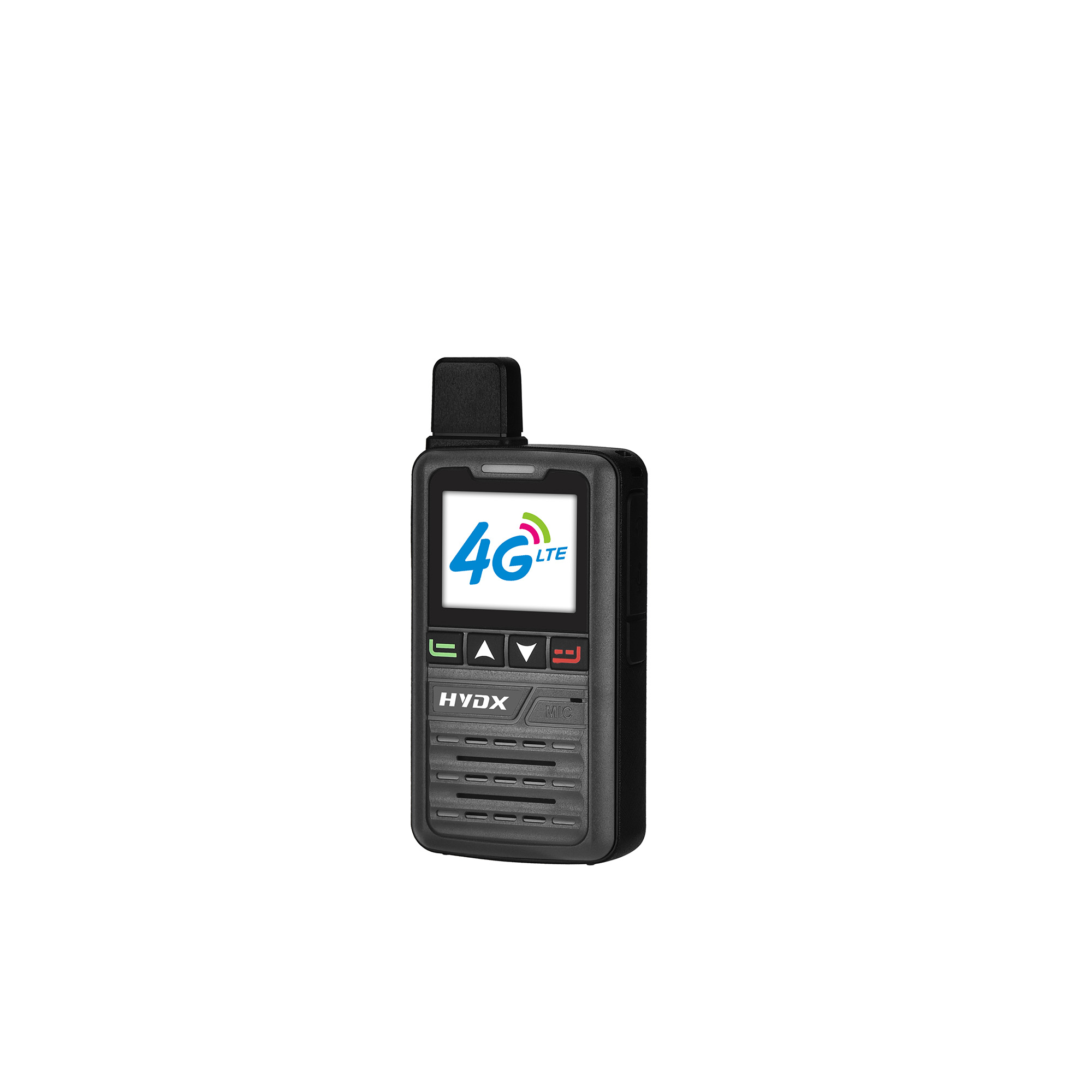

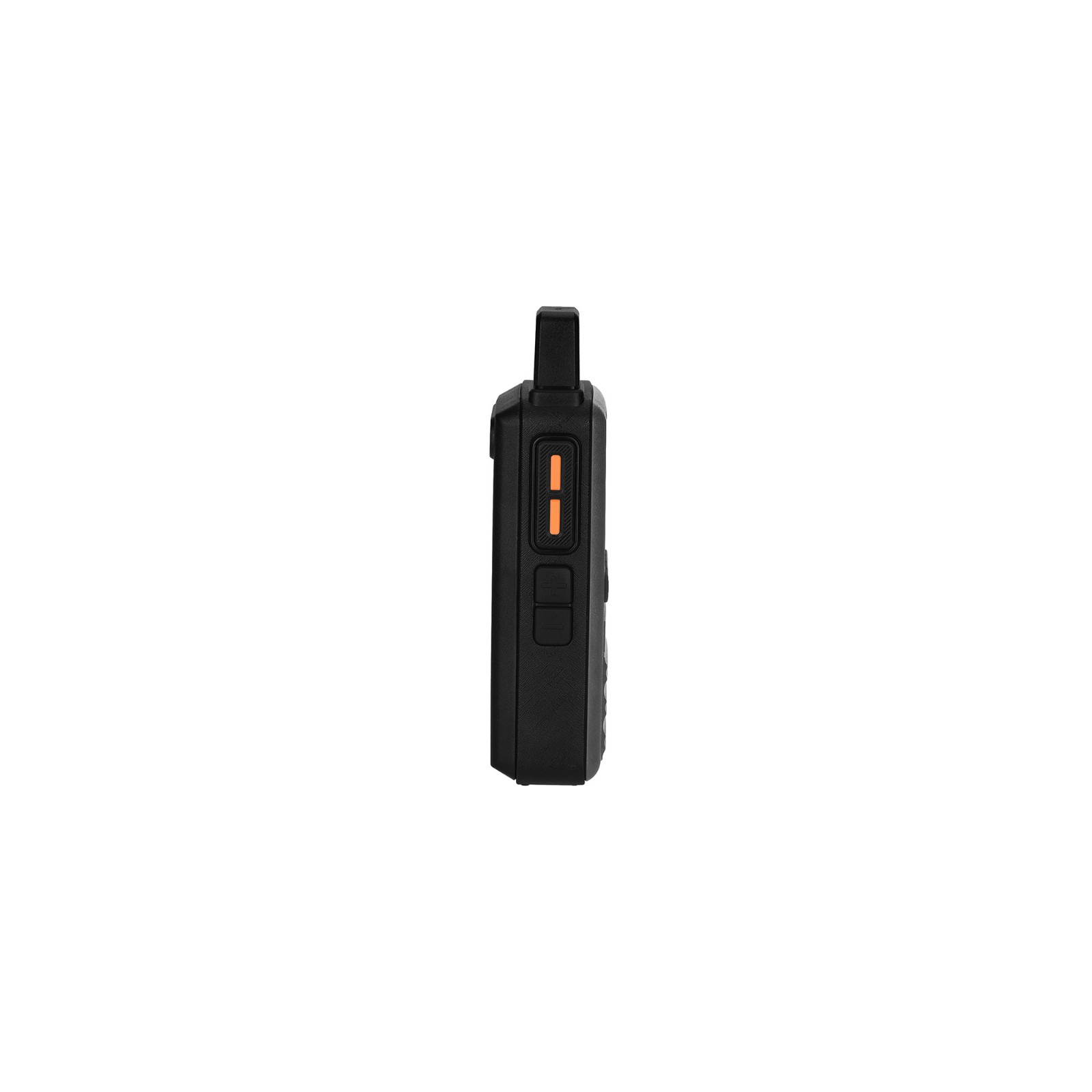

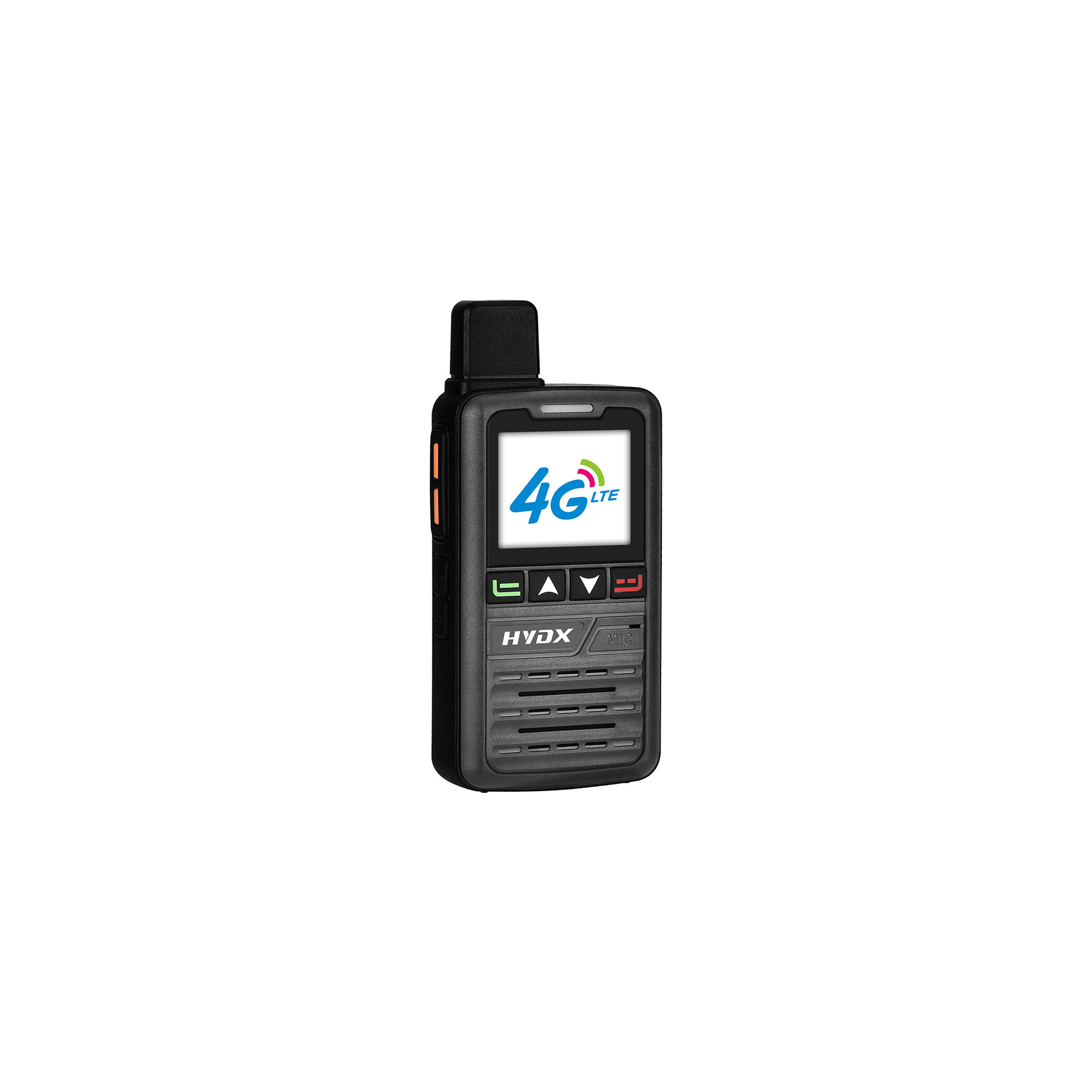

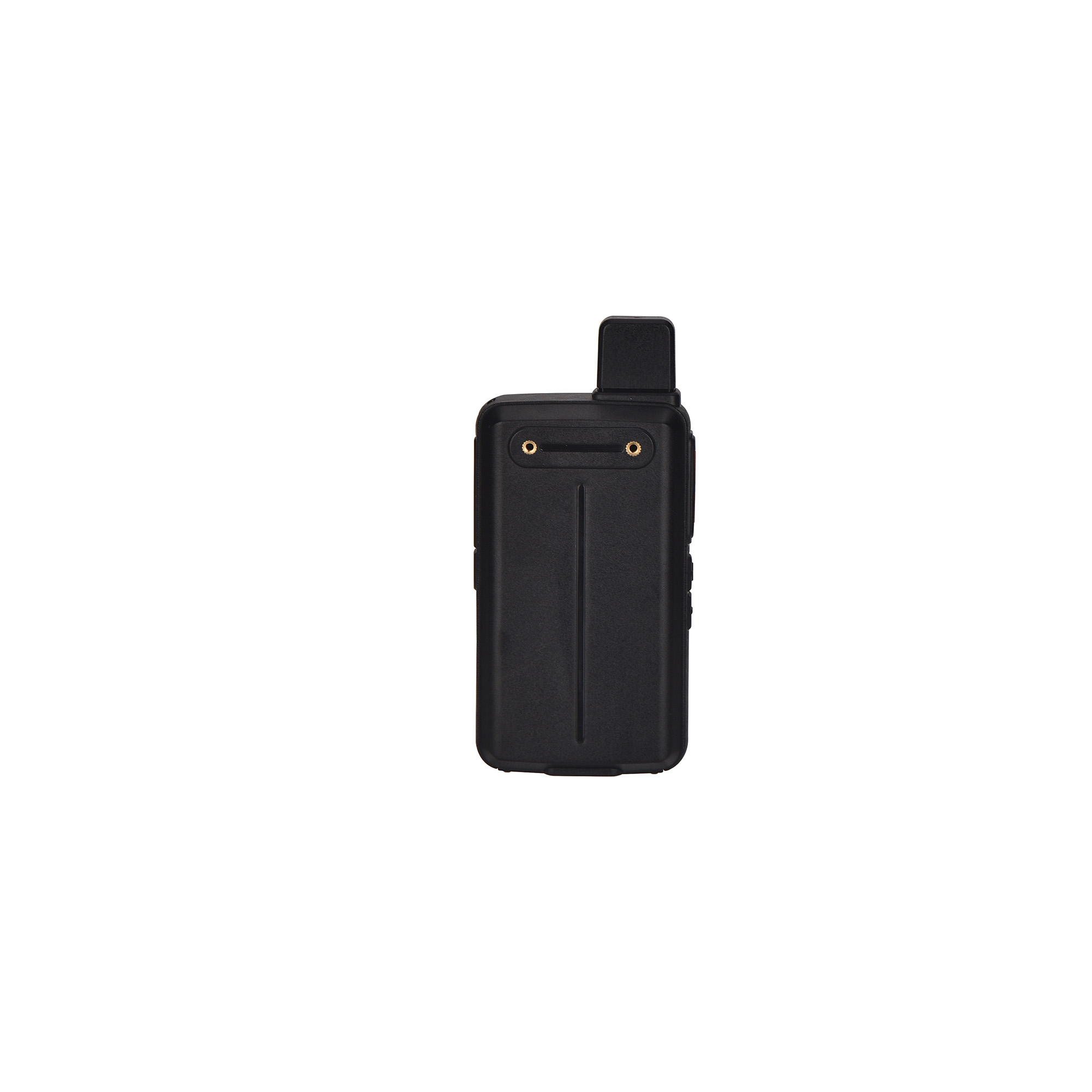

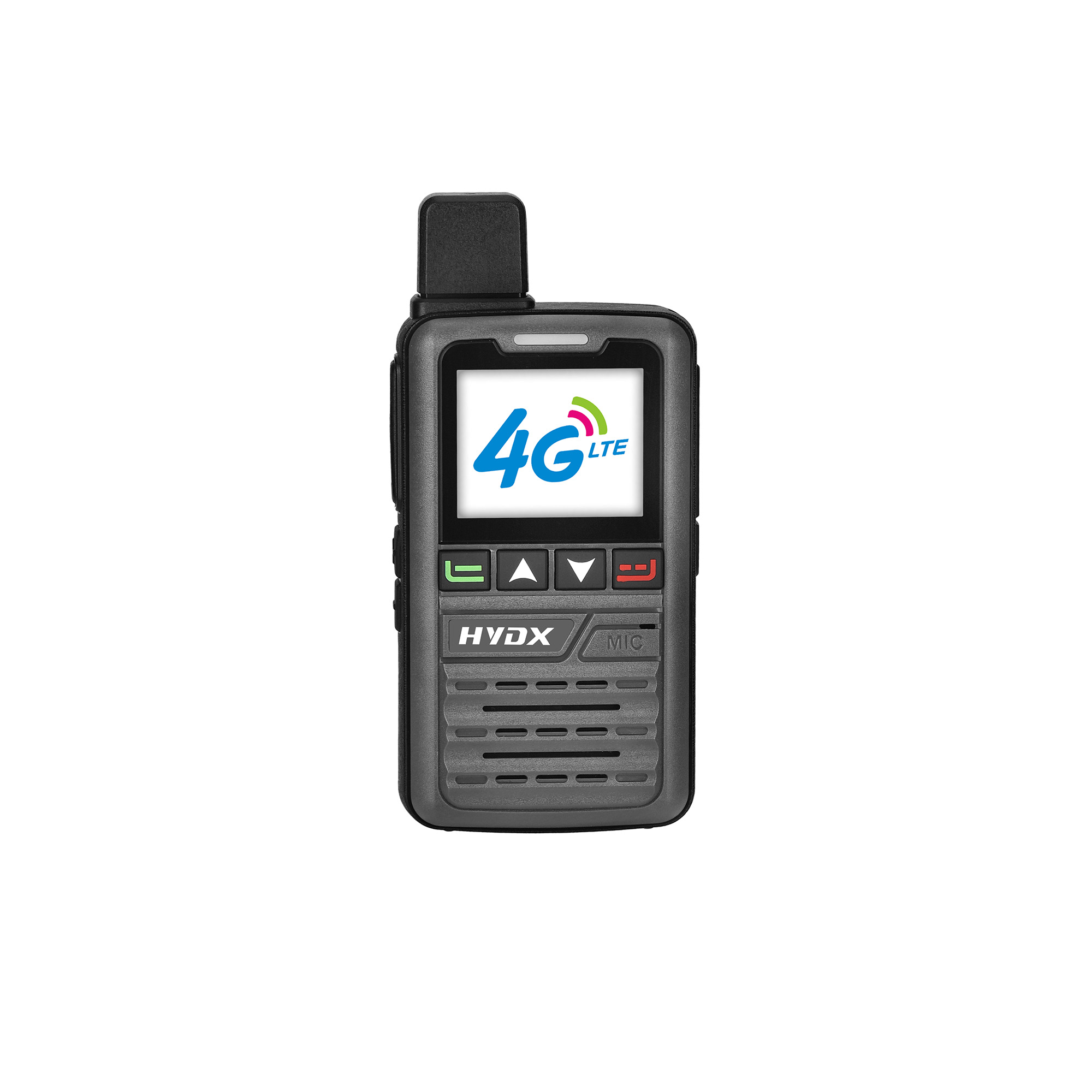

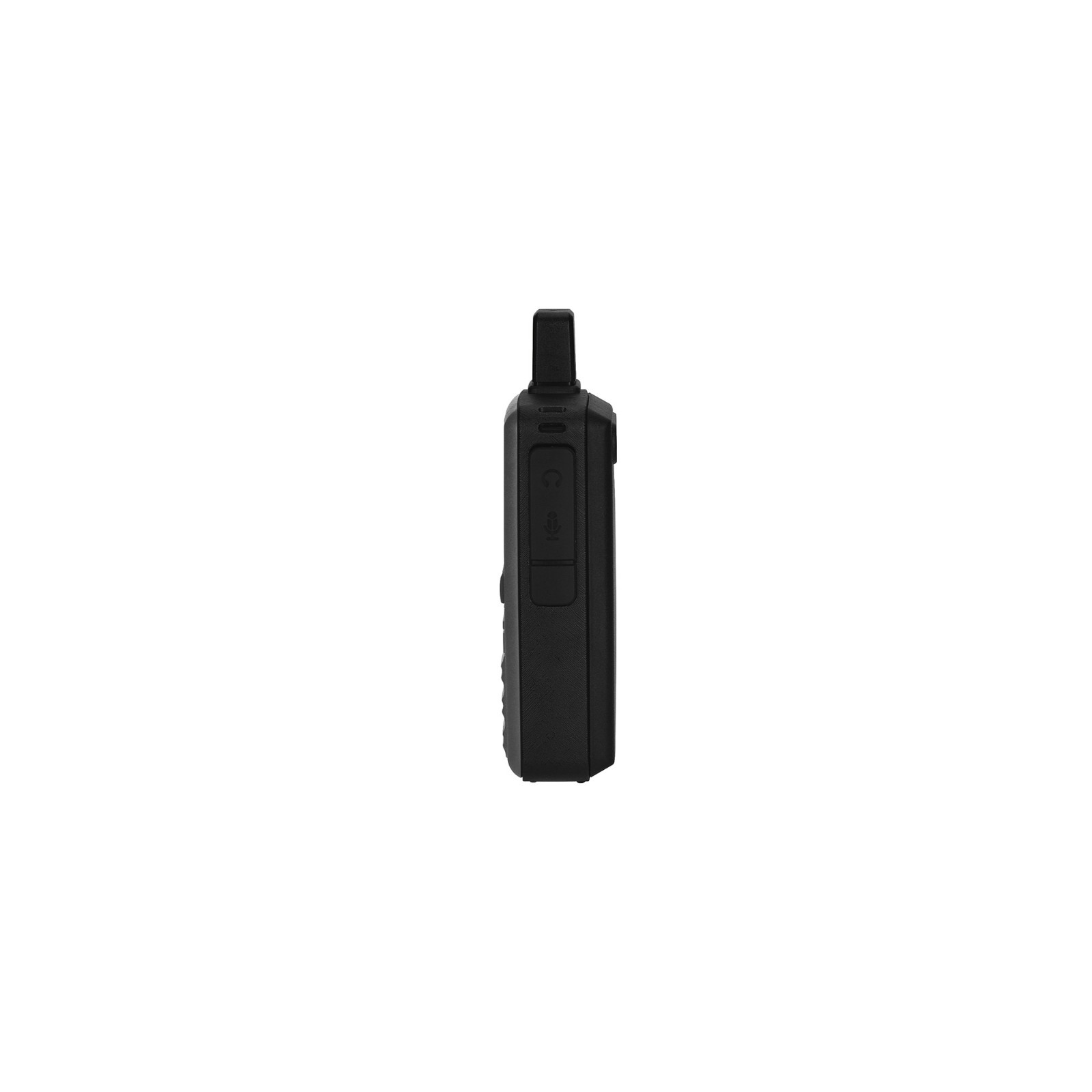

HYDX G200 4G POC raido with 1.77 inch colorful LCD display 3000mAh large battery capacity

Brand:
HYDX
Item NO.:
G200
Order(MOQ):
500
Payment:
T/T,PayPal
Product Origin:
China
Color:
Black/Grey/Blue
Shipping Port:
Xiamen/Shenzhen
Lead Time：
30~45
Weight：
152

Inquiry now

Product Detail

Product Description：

·3000mAh, 4G Lte radio. Clear voice: G200 is equipped with a big size speaker to ensure loud and clear voice calls.
·G200 is an efficient & multifunctional trunking radio for professional users across 4G. Along with the 1.77-inch lcd display, G200 adopts dual color and reliable design with short antenna. Anti-fall, dustproof. With sturdy shell, multi-protective design of imported materials mechanical seismic structure. Designed for outdoor use, easy to carry in outdoor travel.
·Band: M12C-EU Version-FDD B1/B2/B3/B4/B5/B7/B8/B20/B28; TDD B34/B38/B39/B40/B41

·Band: M12C-NA Version-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B66; TDD B38/B40/B41n
·Support private call and group call and interrupt communication function; You can add unlimited group members and notify urgent information anytime.

Main Functions

1.4G Radio

2.1.77 inch Colorful LCD Display Screen 128*64

3.Private Call/Group Call/Priority Call

4.Members Selection

5.3000mAh Large Battery Capacity

6.Cat 1 Module.

7.Support HYDX/Real-PTT/XinPTT Platform

8.Battery Power Voice Prompt

9.Software & Module Remote Update

10.Crisp, Clear & High Quality Sound, High Fidelity Output

11.Type-C Charging

Technical Specification

GENERAL
Working Voltage	DC 3.7V
Operation	RTOS
Language	Chinese/English
Operating Temperature	-20℃+60℃
Battery Type	3000mAh Li-ion
Dimension(Excluding antenna)	122(H)×59(W)×29(D)mm
Weight(Battery,Antenna Including)	About 152g
Antenna Impedance	50Ω
Transmitting Power	21-23 dBm
FDD-LTE Sensitivity TDD-LTE Sensitivity	-97dBm~-100dBm(10MHz) -100dBm(10MHz)
Audio Output Power	≤ 2000mW
Rated Audio Distortion	≤5%

·M10C Version

LTE FDD Frequency	B1	Tx Frequency：1920-1980MHz	Rx Frequency：2110-2170MHz
	B3	Tx Frequency：1710-1785MHz	Rx Frequency：1805-1880MHz
	B8	Tx Frequency：880-915MHz	Rx Frequency：925-960MHz
LTE TDD Frequency	B38	Tx Frequency：2570-2620MHz	Rx Frequency：2570-2620MHz
	B39	Tx Frequency：1880-1920MHz	Rx Frequency：1880-1920MHz
	B40	Tx Frequency：2300-2400MHz	Rx Frequency：2300-2400MHz
	B41	Tx Frequency：2496-2690MHz	Rx Frequency：2496-2690MHz

·M12C-EU Version

LTE FDD Frequency	B1	Tx Frequency：1920-1980MHz	Rx Frequency：2110-2170MHz
	B2	Tx Frequency：1850-1910MHz	Rx Frequency：1930-1990MHz
	B3	Tx Frequency：1710-1785MHz	Rx Frequency：1805-1880MHz
	B4	Tx Frequency：1710-1755MHz	Rx Frequency：2110-2155MHz
	B5	Tx Frequency：824-849MHz	Rx Frequency：869-894MHz
	B7	Tx Frequency：2500-2570MHz	Rx Frequency：2620-2690MHz
	B8	Tx Frequency：880-915MHz	Rx Frequency：925-960MHz
	B20	Tx Frequency：832-862MHz	Rx Frequency：791-821MHz
	B28	Tx Frequency：703-748MHz	Rx Frequency：758-803MHz
LTE TDD Frequency	B34	Tx Frequency：2010-2025MHz	Rx Frequency：2010-2025MHz
	B38	Tx Frequency：2570-2620MHz	Rx Frequency：2570-2620MHz
	B39	Tx Frequency：1880-1920MHz	Rx Frequency：1880-1920MHz
	B40	Tx Frequency：2300-2400MHz	Rx Frequency：2300-2400MHz
	B41	Tx Frequency：2496-2690MHz	Rx Frequency：2496-2690MHz
