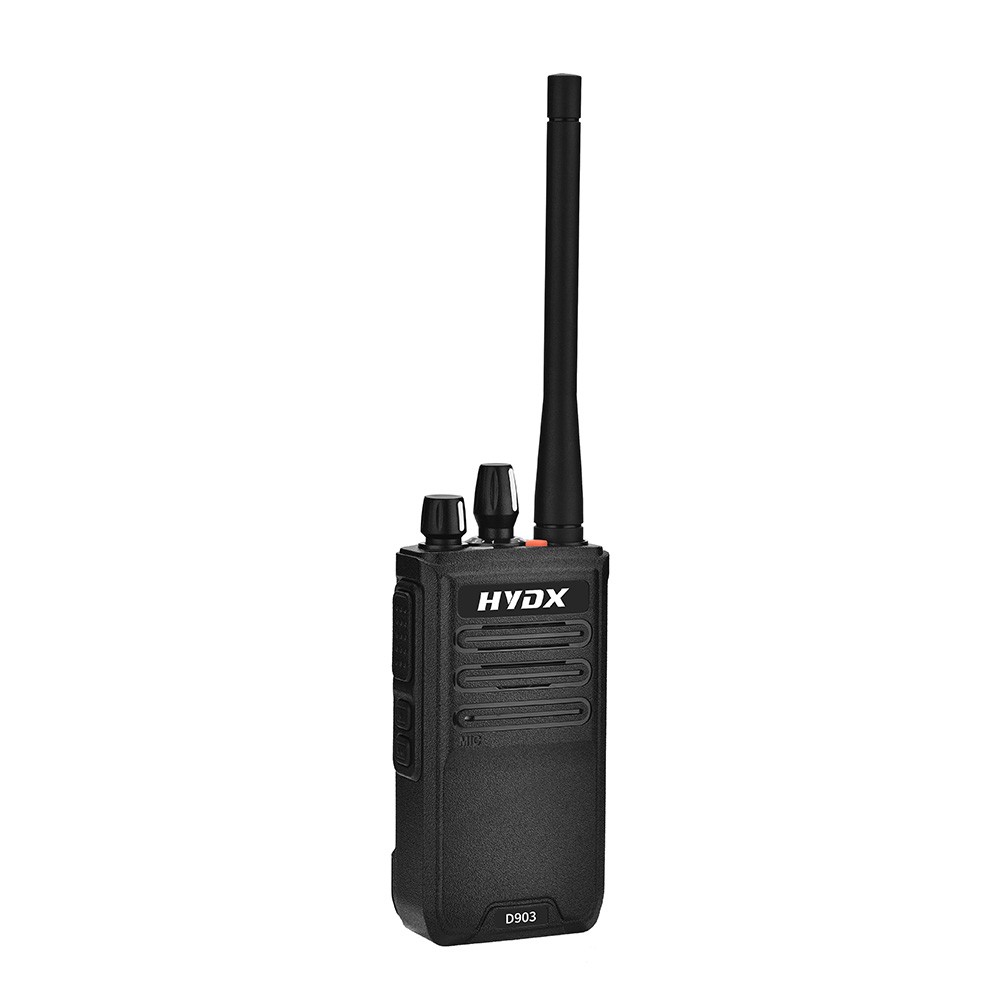

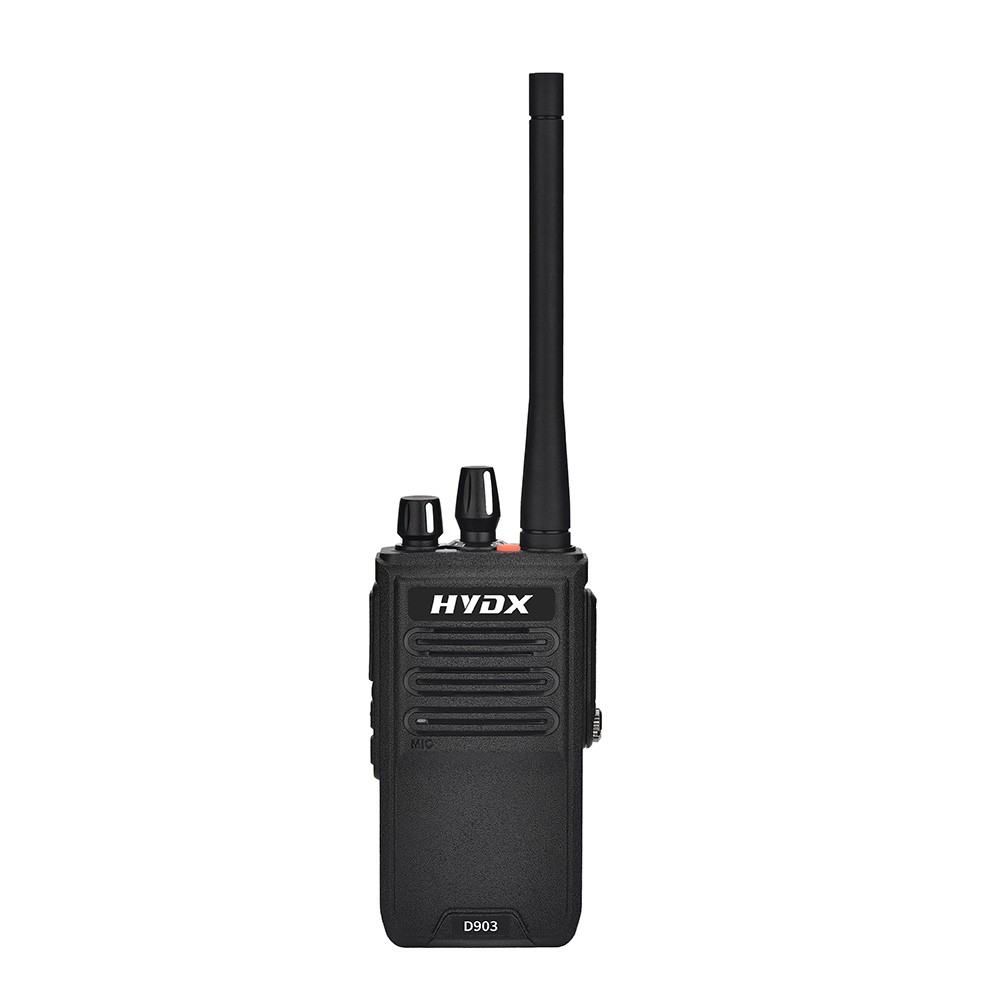

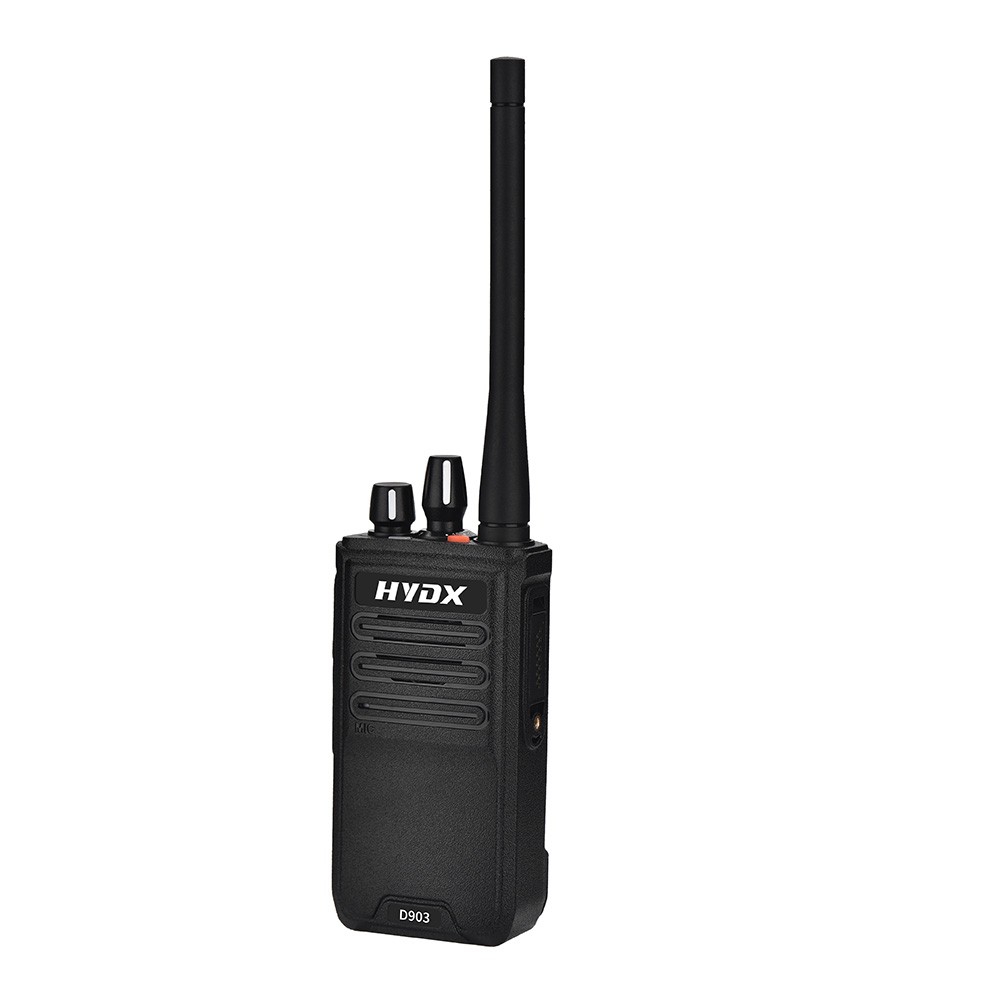

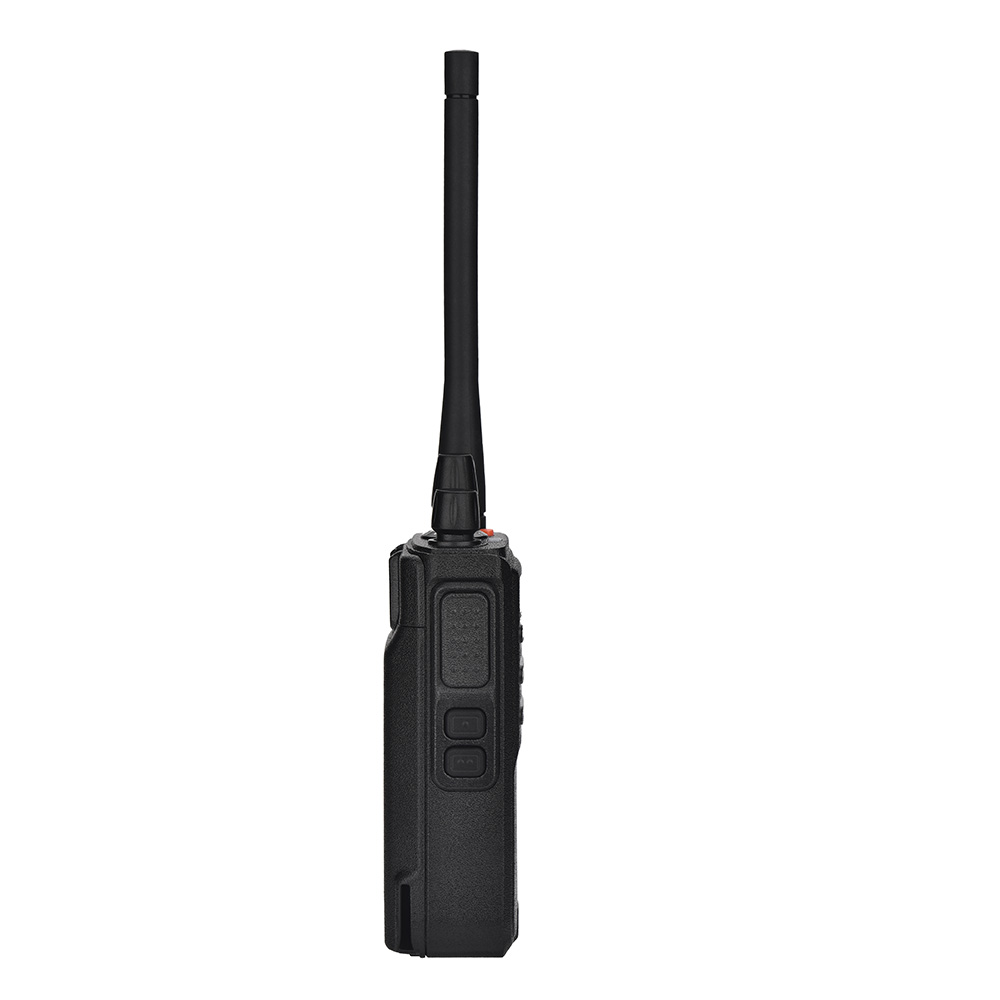

Encryption AES256 Handheld IP68 waterproof DMR Radio

IP68 Professional AES256 Recording Digital Two Way Radio

IP68 Waterproof Professional Digital AES256 Recording Optional 64 Channels UHF Walkie Talkie

Brand:
HYDX
Item NO.:
D903
Order(MOQ):
500
Payment:
T/T,PayPal,
Product Origin:
China
Color:
Black
Shipping Port:
Quanzhou/Xiamen/Shenzhen
Lead Time：
45~60
Weight：
260

Inquiry now

Product Detail

Product Description：

·Newest Released from Manufacturer HYDX. Well Built with a Solid Feel, Superb Audio, Handheld with Dual Mode Digital/Analog Transmit, 4/1W Output Power, 64 Channels, 10,000 Contacts.

·ARC4/AES128/AES256 enhanced encryption compatible with MOTOROLA.
·2000mAh/3000mAh (optional) High-Capacity Battery, Low battery consumption, able to meet daily operation needs.

·Clear and Organized Communications - DMR radio feature brings you crisp & clear sound when communicating, ensures your team can maintain clear and organized communications.

·IP68 waterproof two-way radio; keep in 1 meter depth of water for 1 hour; provides great convenience for using the walkie talkie in severe weather.

·D903 supports multiple functions such as Recording (300H) and can use the emergency Alert function in case of emergency.

Main Functions

1.Stored 64 Channels Capacity

2.10,000 Digital Contacts

3.Digital Encryption ARC4/AES128/AES256 (optional)

4.Private/Group/All Call

5.Digital/Analog Mode

6.Emergency Alarm

7.Monitor

8.Battery Save

9.Repeater TDMA Tier II Modes (Hytera, Motorola, Kirisun etc.)

10.Scanning

11.VOX

12.DTMF

13.Recording 300H (Optional)

Technical Specification

GENERAL
Frequency Range	UHF 400-470MHz
Channels Capacity	64 (16 Channel*4 Zone)
Channel Spacing	12.5kHz/25kHz
Operation Voltage	DC 7.4V
Battery Type	Li-polymer
Battery Capacity	2000mAh/3000mAh (optional)
Output Current	400mA
Charging Time	4-5 hours
Battery Life@5/5/90	Analog:11h/Digital:15h
Operation Temperature	-20℃~+50℃
Audio Power Output	≤2W@16W
Dimensions (H×W×D)	110.2(H)56(W)38.3(D)
Weight	260g
TRANSMITTER
Carrier Output Power	H: ≤4W L: ≤1W
Carrier Frequency Tolerance	≤±1PPM@200~500MHz
Adjacent Channel Power	≤-60dB@12.5kHz ≤-65dB@25kHz
Modulation Mode	4FSKDigital 12.5kHz Data/Voice：7K60FXW 4FSKDigital 12.5kHz Data：7K60FXD
Audio Distortion	≤ 5%
RECEIVER
Static Sensitivity	≥-117dBm (Eer≤5% )
Co-Channel inhibition	≥-12dB
Adjacent Channel Selectivity	≥60dB
Receiver Spurious Emission	≥57dBm
Blocking	≥84dB
Intermodulation Response Rejection	≥50dB
