Global Brand ODM AES256 Digital 2 Way Radios

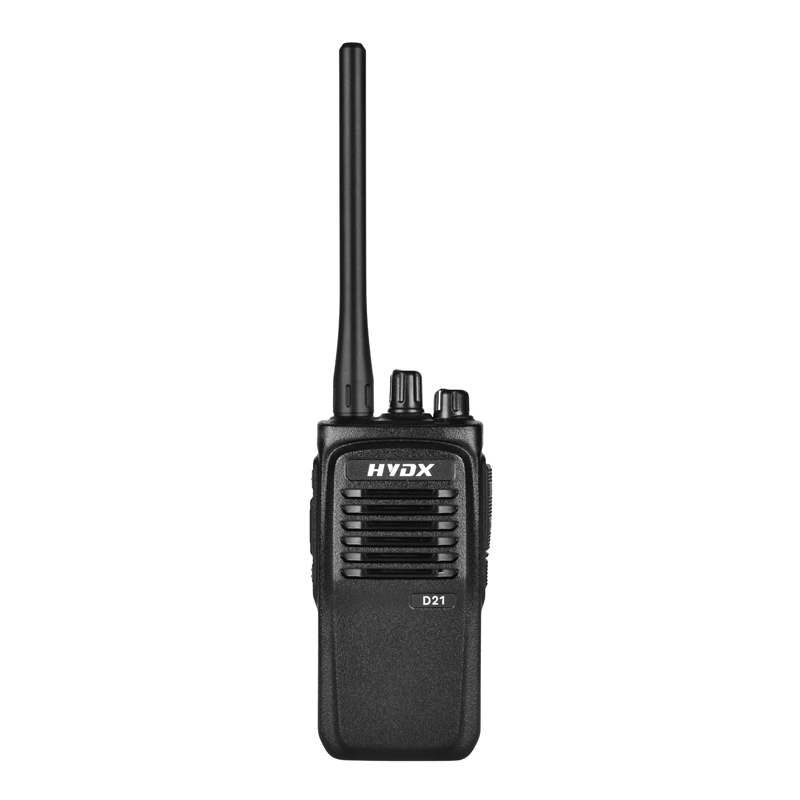

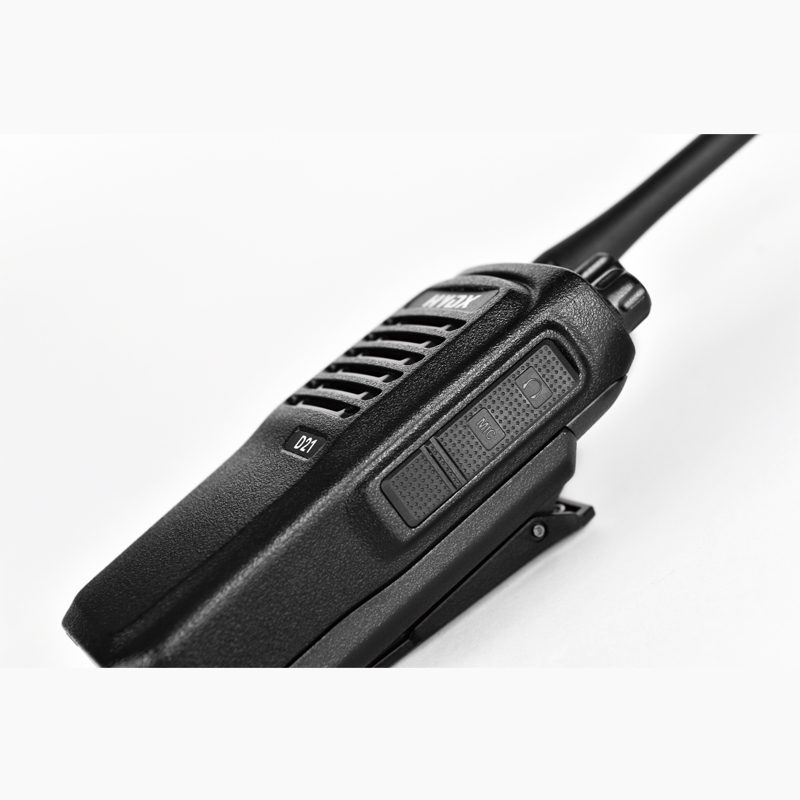

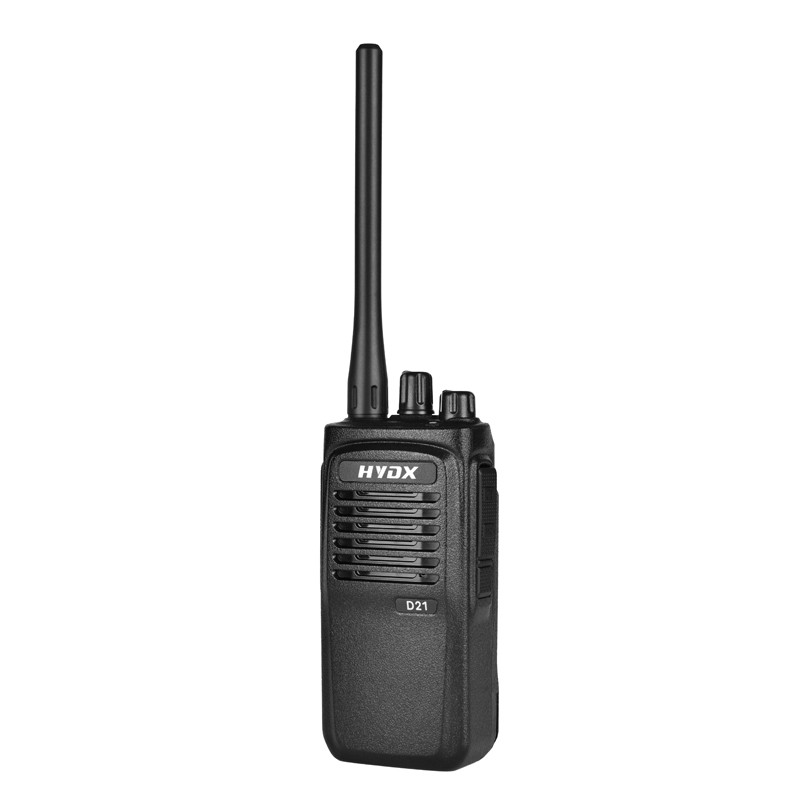

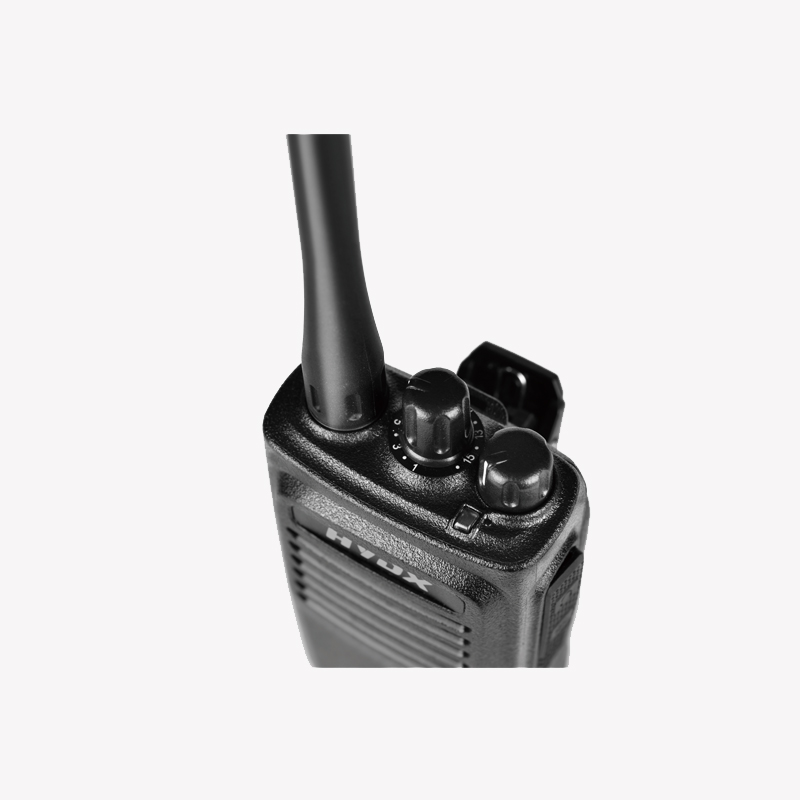

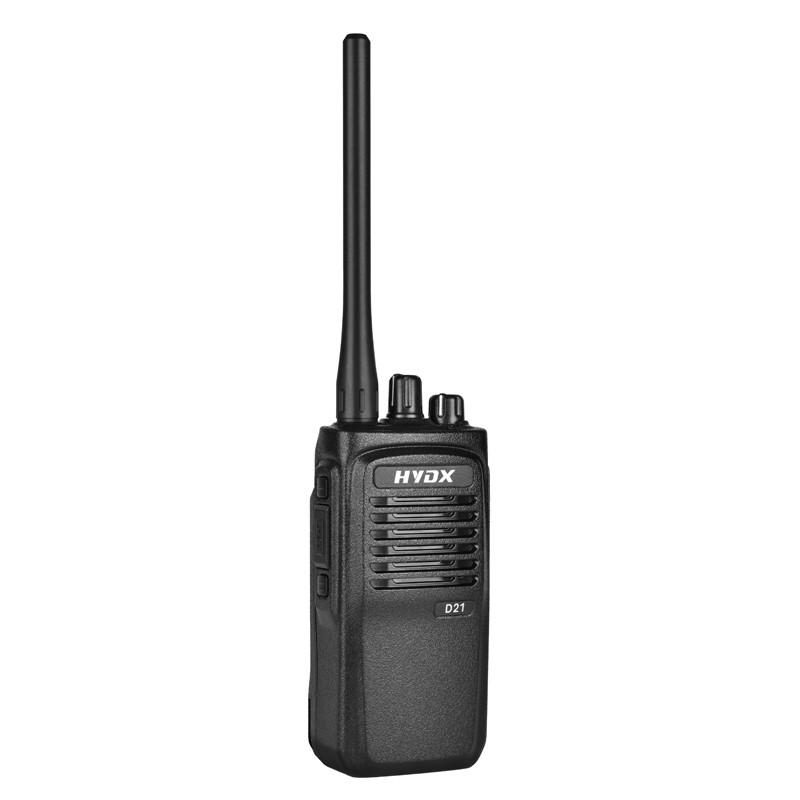

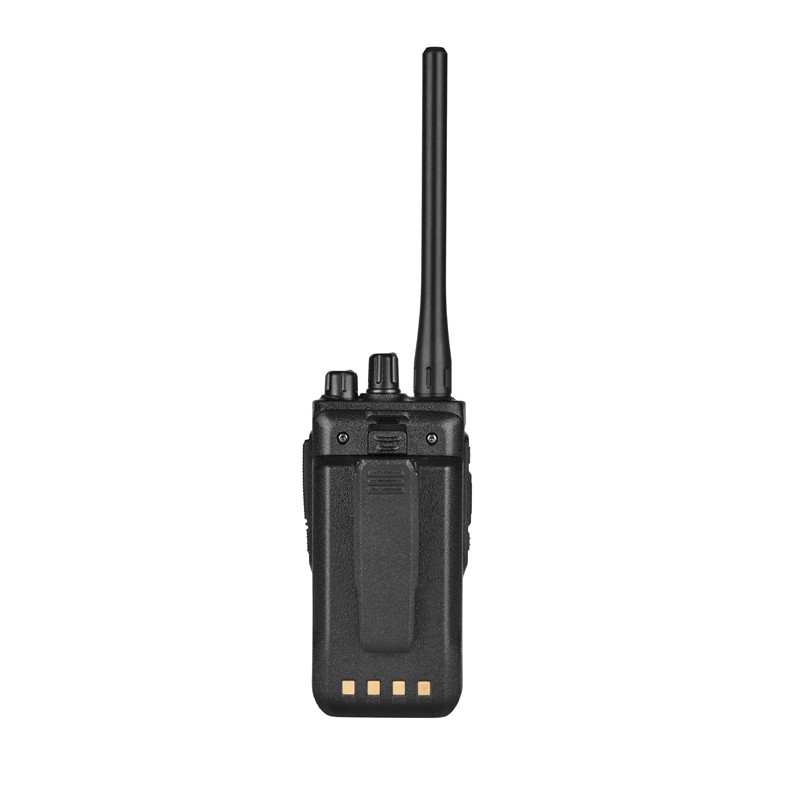

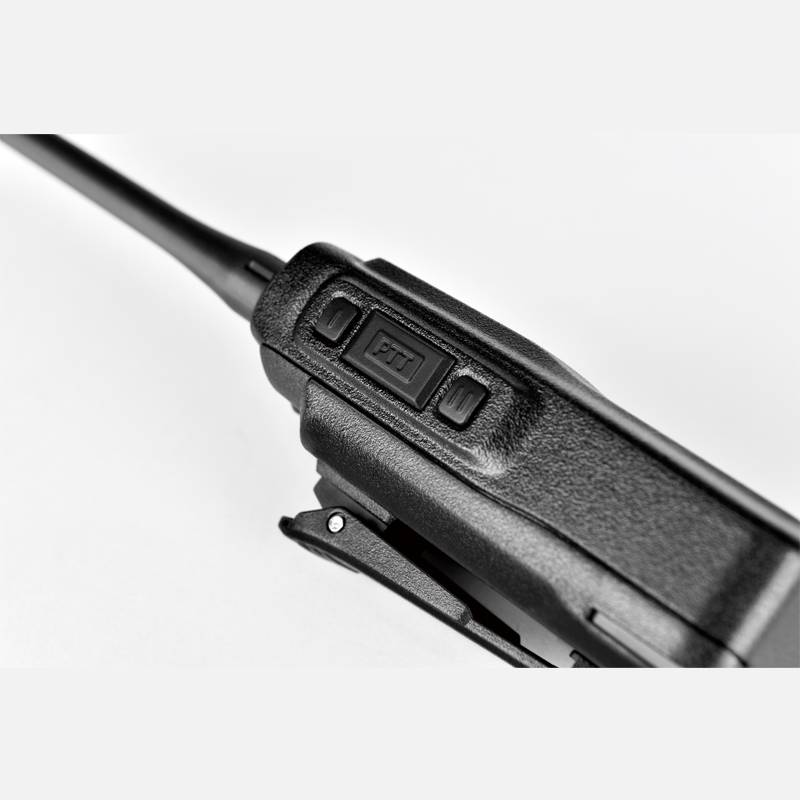

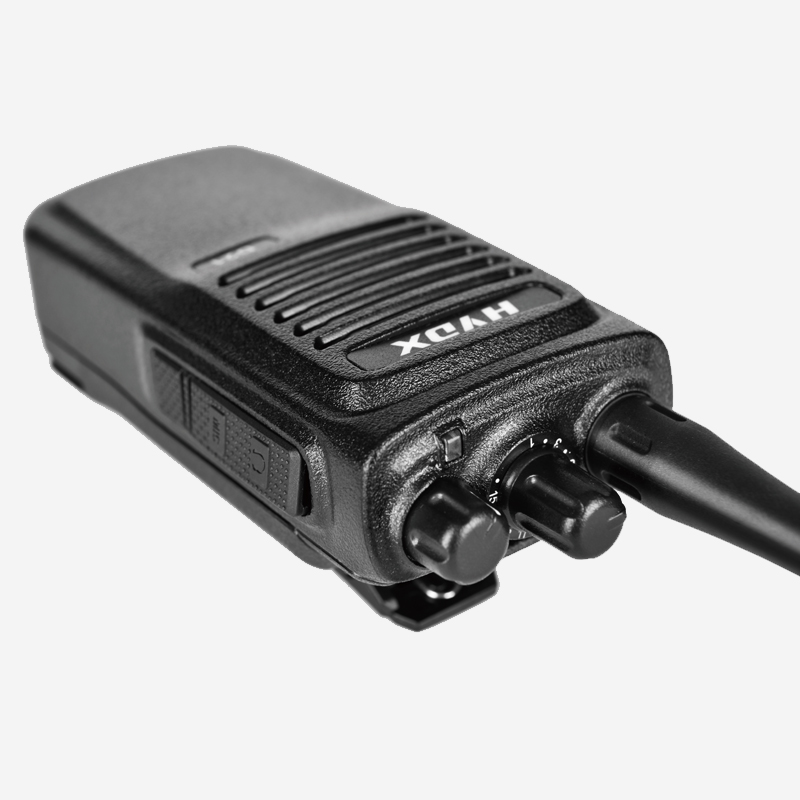

Global Brand ODM AES128/256 Digital Encryption DMR Business Rugged Digital 2 Way Radios

Brand:
HYDX
Item NO.:
D21Plus
Order(MOQ):
300
Payment:
T/T,PayPal
Product Origin:
China
Color:
Black
Shipping Port:
Quanzhou/Xiamen/Shenzhen
Lead Time：
45~60
Weight：
260

Inquiry now

Product Detail

Product Description：

·Clear and Stable Communication - HYDX D21Plus has 128 channels certified by FCC with 105 sets of CTCSS (Continuous Tone-Coded Squelch System) PRIVACY CODES, digital coding and more channel options fully guarantee the stability of the walkie-talkie in the communication process. It supports multiple digital formats of analog and digital.

·ARC4/AES128/AES256 enhanced encryption compatible with Motorola.

·Up to 16h Battery Life@5/5/90 - Digital Mode, The walky talky with a large-capacity 1600mAh (2500mAh optional) lithium battery can work for up to 12~16 hours in power saving mode, which fully meet your needs. And it only takes less than 4-5h to be fully charged quickly, saving your precious time.
·Long Distance Transmission - HYDX digital radio can reach a maximum transmission distance of 5~8KM in a barrier-free environment. Two types of power (high power 5W, low power 1W) can meet your different communication distance requirements.
·Durable and Rugged Design - The digital walkie talkie has business design, solid appearance and fall resistance, which can meet daily use.
·Suitable for Various Scenarios - Retail, hotel, restaurant, medical, education, manufacturing, public utilities... This digital walkie-talkie is suitable for any of the above injury scenarios, and its advanced appearance is the best choice for business people.

·100/500 hours (Optional) recording function allows you to record important matters at any time.

Main Functions

1.Stored 128 Channels capacity

2.1000 Digital Contacts

3.Digital Encryption ARC4/AES128/AES256 (Optional)

4.Private/Group/All Call

5.Digital/Analog mixed Mode

6.Emergency Alarm

7.Monitor

8.Repeater

9.Scanning/Auto Scanning

10.VOX

12.DTMF

13.Firmware Update

14.Noise Reduction (Optional)

15.Recording 100/500 Hours (Optional)

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz
Channel Capacity	128（16 Channel*8 Zone）
Channel Spacing	12.5kHz
Operation Voltage	DC7.4V
Battery Type	Li-polymer
Battery Capacity	1600mAh/2500mAh (Optional)
Output Current	450mA
Charging Time	4-5 Hours
Battery Life@5/5/90	Analog:12h/Digital:16h
Operation Temperature	-20℃~+50℃
Audio Power Output	≤1W@16W
Dimensions (H×W×D)	132(H)61(W)42(D)
Weight	260g
TRANSMITTER
Carrier Output Power	H: ≤5W L: ≤1W
Carrier Frequency Tolerance	≤±1PPM@200~500MHz
Adjacent Channel Power	≤-61dB@12.5kHz ≤-65dB@25kHz
Modulation Mode	4FSKDigital 12.5kHz Data/Voice：7K60FXW 4FSKDigital 12.5kHz Data：7K60FXD
Transmit Spurious Emission	< -36dBm@< 1 GHz < -30dBm@< 12.75 GHz
TX FSK Error	<5%@Digital
Audio Distortion	≤3%
RECEIVER
Static Sensitivity	≤-117dBm (Eer≤1%) ≤-121dBm (Eer≤5%)
Co-Channel inhibition	≥-12dB
Adjacent Channel Selectivity	≥63dB
Conducted Spurious Emission	≤-57dBm
Receiver Spurious Emission	≤-47dBm
Blocking	≥85dB
Intermodulation Response Rejection	≥65 dB
