2W Commercial Handheld Rugged 2 Way Radio

2W UHF License-Free portable handheld rugged 2 way radio

Brand:
HYDX
Item NO.:
C112A
Order(MOQ):
500
Payment:
T/T,L/C,Credit Card,PayPal,Western Union,Cas
Product Origin:
China
Color:
Black
Shipping Port:
Xiamen/Shenzhen
Lead Time：
45~60
Weight：
230

Inquiry now

Product Detail

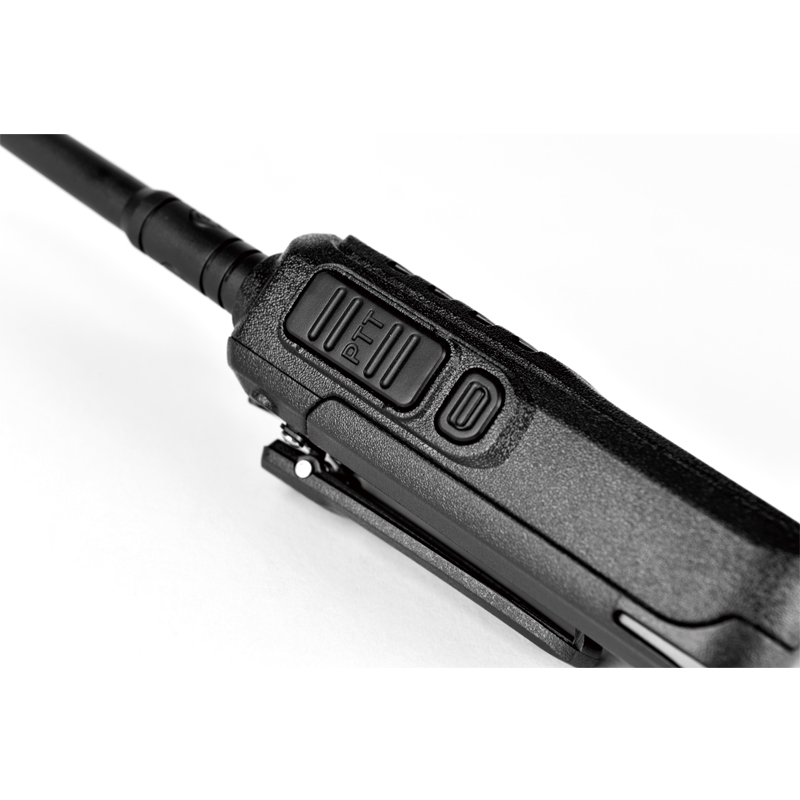

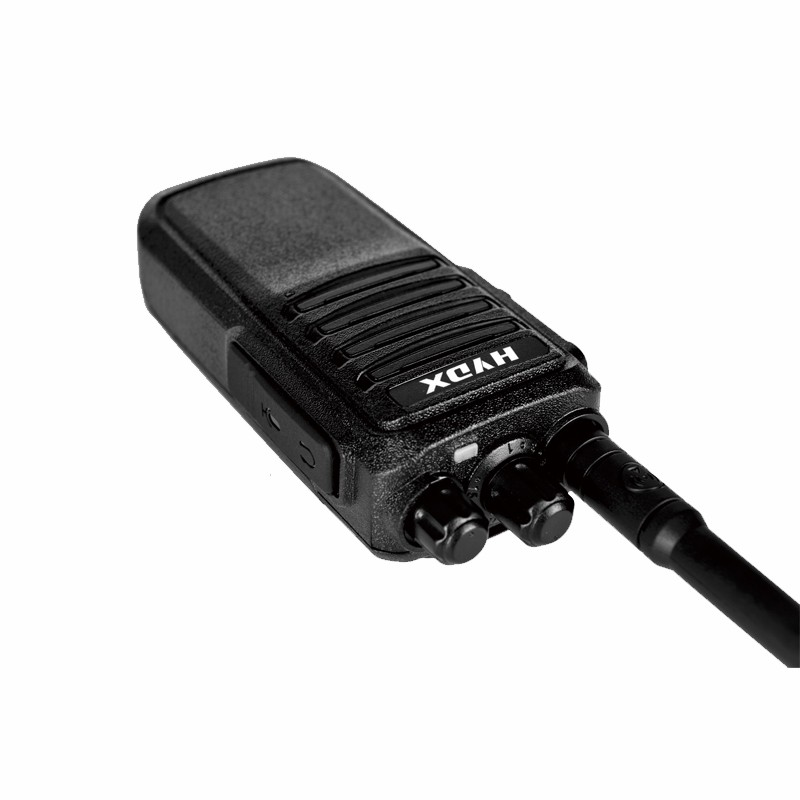

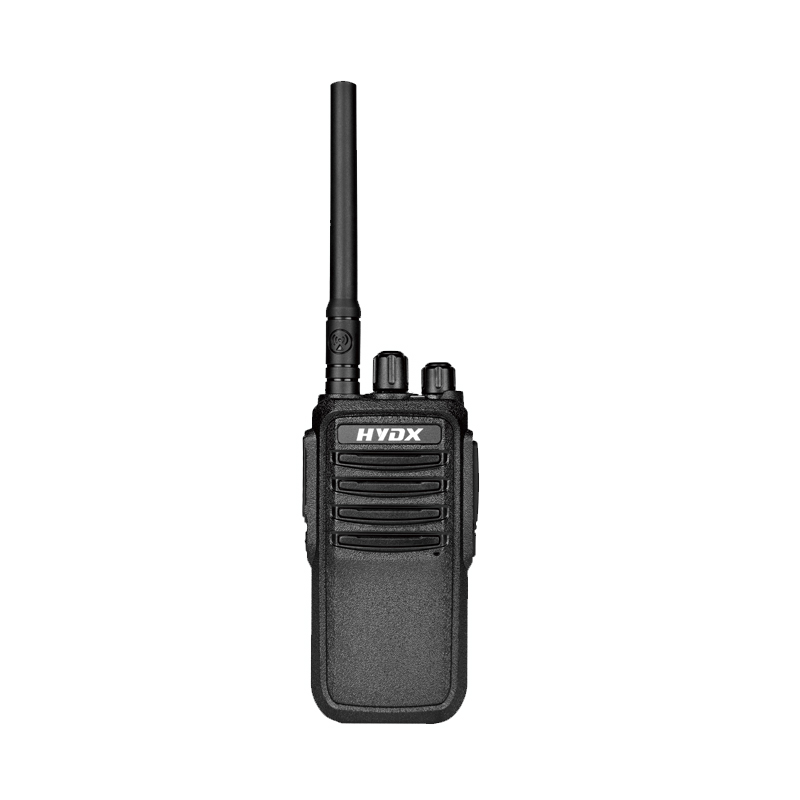

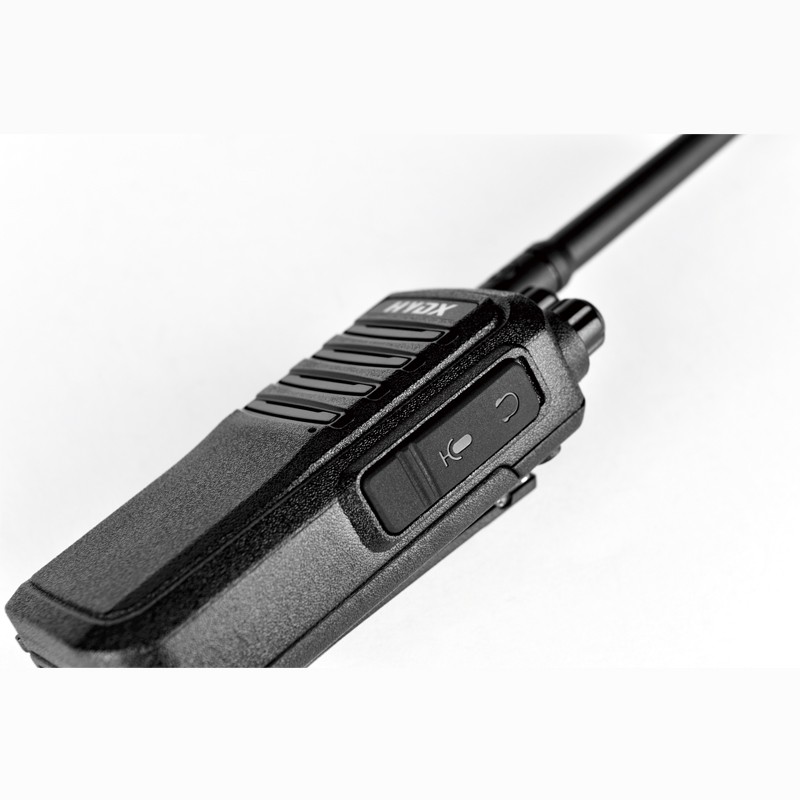

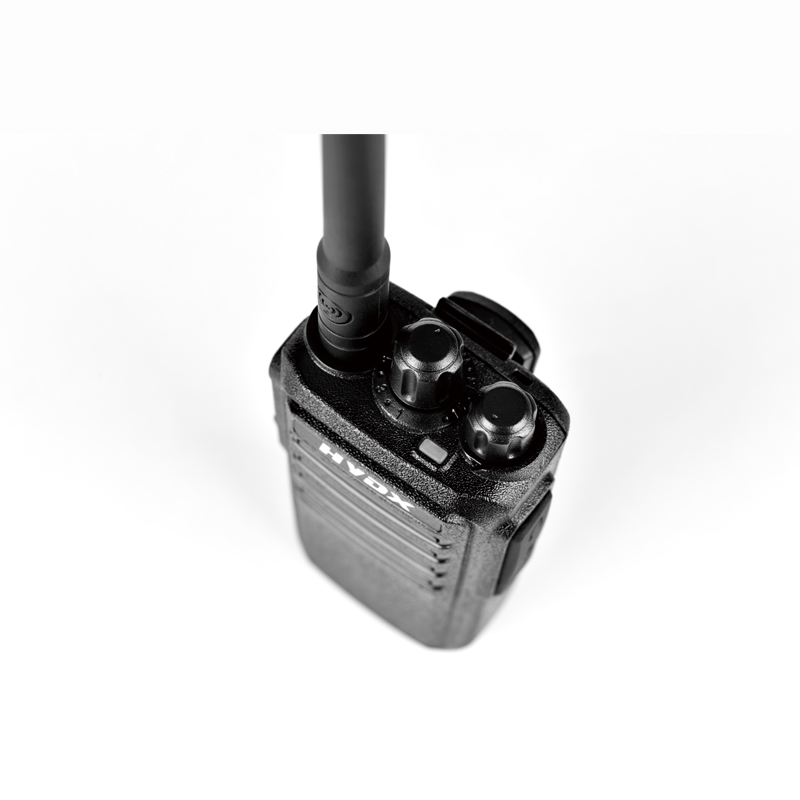

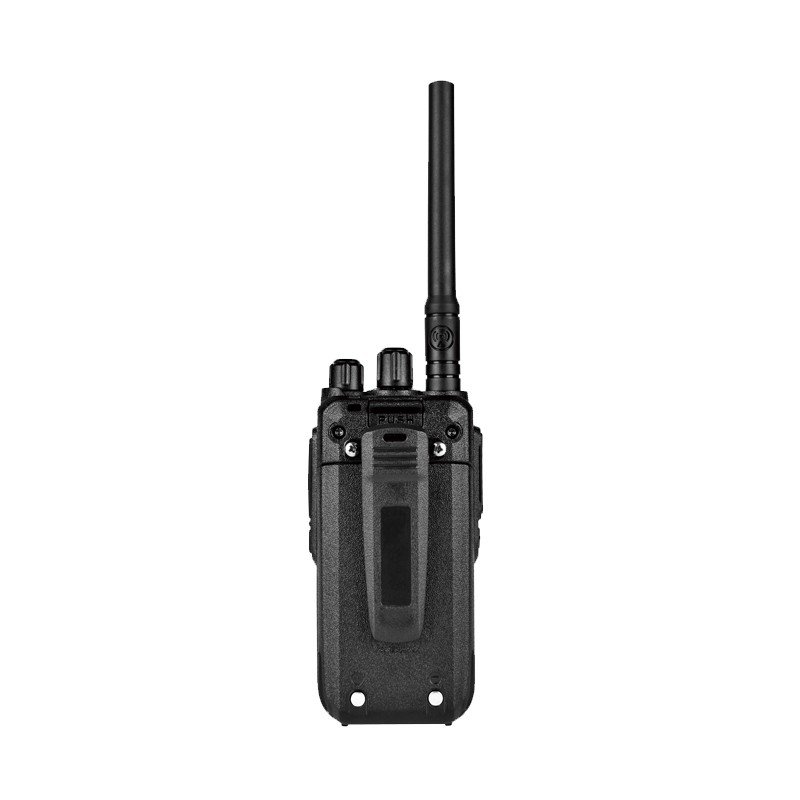

2W FRS Commercial Handheld Rugged 2 Way Radio

Product Description：

2 watt programmable handheld radios，frequency range 400-470MHz/136-174MHz.Up to 0.5-1.2 miles reception (*Varies from different working environments).

Long range, 16 channels, easy to use, built-in 50 CTCSS Tones/105 DCS codes

Ultra portalbe and solid built, long time battery duration (Up to 24 hours typical use)

Loud and clear audio, VOX, Scanning，Voice Report

Ideal for Ski Field, Security Guard, Warehouse, Road Trip, Hunting and other outdoor purposes.

Main Functions

1.400-470MHz/136-174MHz

2.Scrambler

3.Reverse Frequency/Offset

4.Compandor

5.SQL

6.Scan

7.DTMF/PTT ID

8.TOT

9.Tail Elimination

10.CTCSS/DCS

11.BCLO

12.Voice Report

13Programming Encryption

Technical Specification

GENERAL
Frequency Range	UHF:400-470MHz VHF:136-174MHz
RF Output Power	2W
Channels	16
Channel Spacing	Wide:25KHz Narrow:12.5KHz
CTCSS/DCS	50 CTCSS / 105 DCS
Antenna Impedence	50Ω
Operating Temperature	-20℃+50℃
Operating Voltage	DC 3.7V
Battery Type	1200mAh
Dimension(Excluding antenna)	130(H)×61(W)×36(D)mm
Weight(Battery,Antenna Including)	About 230g
TRANSMITTER
Output Power	2W
Modulation	F3E
Spurious and Harmonics	-65 dB
FM Noise	≤-45 dB
Audio Distortion	≤5%
RECEIVER
Reference Sensitivity	≤ -123 dBm @25K
Selectivity	≤-65 dB
Audio Distortion	≤5%
Intermodulation	≤-55 dB
S/N	≥45 dB
Rater Output Power	750mW
